Patent Suitcase Cover With Lock

[Category : - OTHER- Travelling articles]
[Viewed 2428 times]

The unique features of the proposed model are:
1) This cover protects the bag not only from damages but also from malicious access to its content.
2) The design of the cover excludes its loss during transportation.

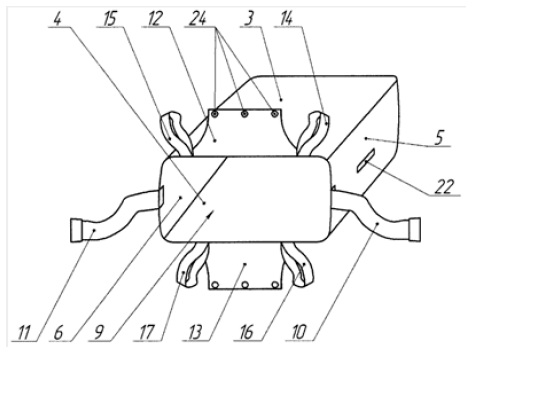

Please find the patented model (Image 1)

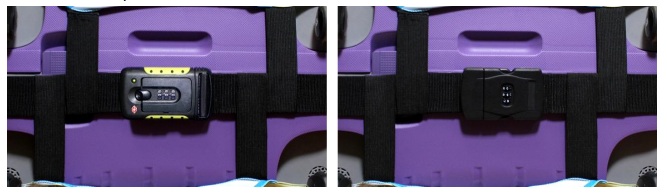

No additional devices required in the form of locks and straps to secure the contents of the suitcase.

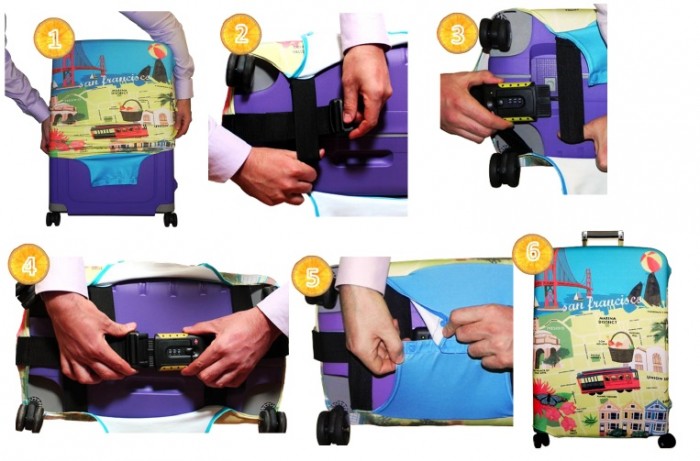

Please find a brief instruction on the use of the cover (Image 2)

Web publication in Russia Link
Please find below patent description in English:

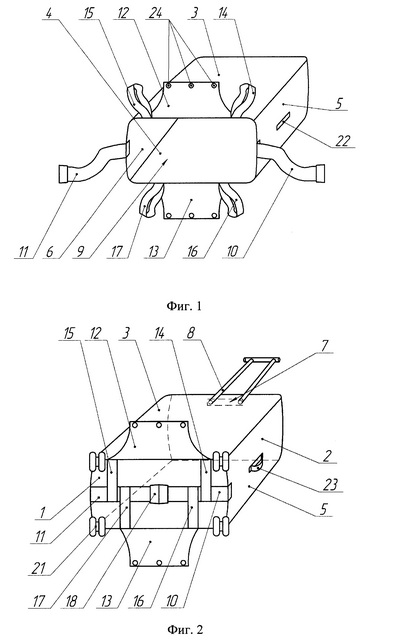

The formula of a utility model (Image 3)

1. pouch bag made of an elastic fabric consisting of a top wall and connected there to a front wall, rear wall and two side walls and having an opening in the upper wall of the handle for the suitcase and the opening for putting on the cover bag, with a bottom of each side wall is attached at least one belt, characterized in that it comprises a bottom wall consisting of adapted to releasably connect with each other a first part connected to a lower portion of the front wall, and a second portion connected to the lower part of the rear wall, where in the lower portion of the front wall are attached at least two hinges and the lower portion of the rear wall are attached at least two loop ends of the straps are adapted to be connected to each other by means of locking devices operable bottom wall closes the opening for putting on the cover bag by hiding the locking device and forming holes for legs or wheels of the suitcase.
Case according to claim 2. 1, where in the elastic fabric is polyester or bi-stretch. Case according to claim 3. 1, characterized in that the hinges are made elastic.
Case according to claim 4. 1, characterized in that the loops are made of fabric or plastic or rubber.
Case according to claim 5. One, where in belts made of cloth or leather.
Case according to claim 6. 1, characterized in that one side wall or in the two side walls of an opening to the side of the suitcase handle.
Case according to claim 7. 1, characterized in that the releasable connection of the first and second portions of the bottom wall is a zipper or rivets.
Case according to claim 8. 1, characterized in that the strap attached to the first side wall is
configured to threading through the first loop, attached to the lower portion of the front wall, and a first loop attached to the lower portion of the rear wall, and a belt attached to the second side wall is configured to threading through second loop attached to the lower portion of the front wall, and a second loop attached to the lower part the rear wall.
