Flip chart holder with simple lock to secure pages POP

[Category : - MECHANICAL ENGINEERING- BUSINESS METHODS- Advertising methods]
[Viewed 3377 times]

An updatable and lockable flip chart holder that can clip into the rail strip or channel of a shelf or fasten to a display at a retail store. The flip chart holder allows manufacturers or promoters of products that are sold at retail to create consumer, educational, or promotional flip charts that can easily and economically be updated by opening rings. The lockable flip chart has a panel, and attached to the panel is a ring system with each ring having two ring halves and hinged leaves connected to each other and attached to each ring half respectively. A locking mechanism on the ring system presses against the leaves to prevent the ring halves from opening. Locking the rings also provides security so consumers cannot take the pages out of the flip chart holder.

Financial information

U.S. Patent 6,666,609 is a specific use of broader patent 7,300,222 that is also listed for sale or license covering a rotatable locking mechanism used with ring systems that open similarly to the rings of a binder. A ring system has rings each having two ring halves and hinged leaves connected to each other and attached to each ring half respectively. The locking mechanism on the ring system presses against the leaves to prevent the ring halves from opening. A lock for the rings can comprise an Allen screw or a similar rotatable device located at the cover over the hinged leaves of a binder or a flip chart holder. Ideally, the device has a lip or similar raised area so it is not removable from an aperture in the cover of a binder or a lockable flip chart holder. Locking the rings provides security so users cannot take pages out of a binder or a flip chart holder.

Do you have a need for a lockable ring mechanism that enables both easy content updates for ring binders and P.O.P flip chart displays and prevents the unauthorized removal of pages? While other approaches could solve the problems that this device is designed to overcome, none does so as proficiently or as cost effectively as the patented technology.

Lockable Ring Binder Enclosure
▪ Corporate and retail applications
▪ Prevents employees, students, retail consumers, service technicians and others from removing or adding sensitive content

Lockable P.O.P Flip Chart Holder
▪ Retail merchandising applications
▪ Proven success at major retailers such as OfficeMax and Office Depot
▪ Prevents consumers from disabling retail flip chart displays
▪ Offers customers a solution that minimizes costs by allowing them to replace pages rather than the entire flip chart when updating P.O.P displays

Financial Review
▪ Highly cost effective with minimal retooling needed
▪ Low material and implementation cost
▪ Easily integrated into present production process
▪ Entry to new vertical markets

Patent publications:

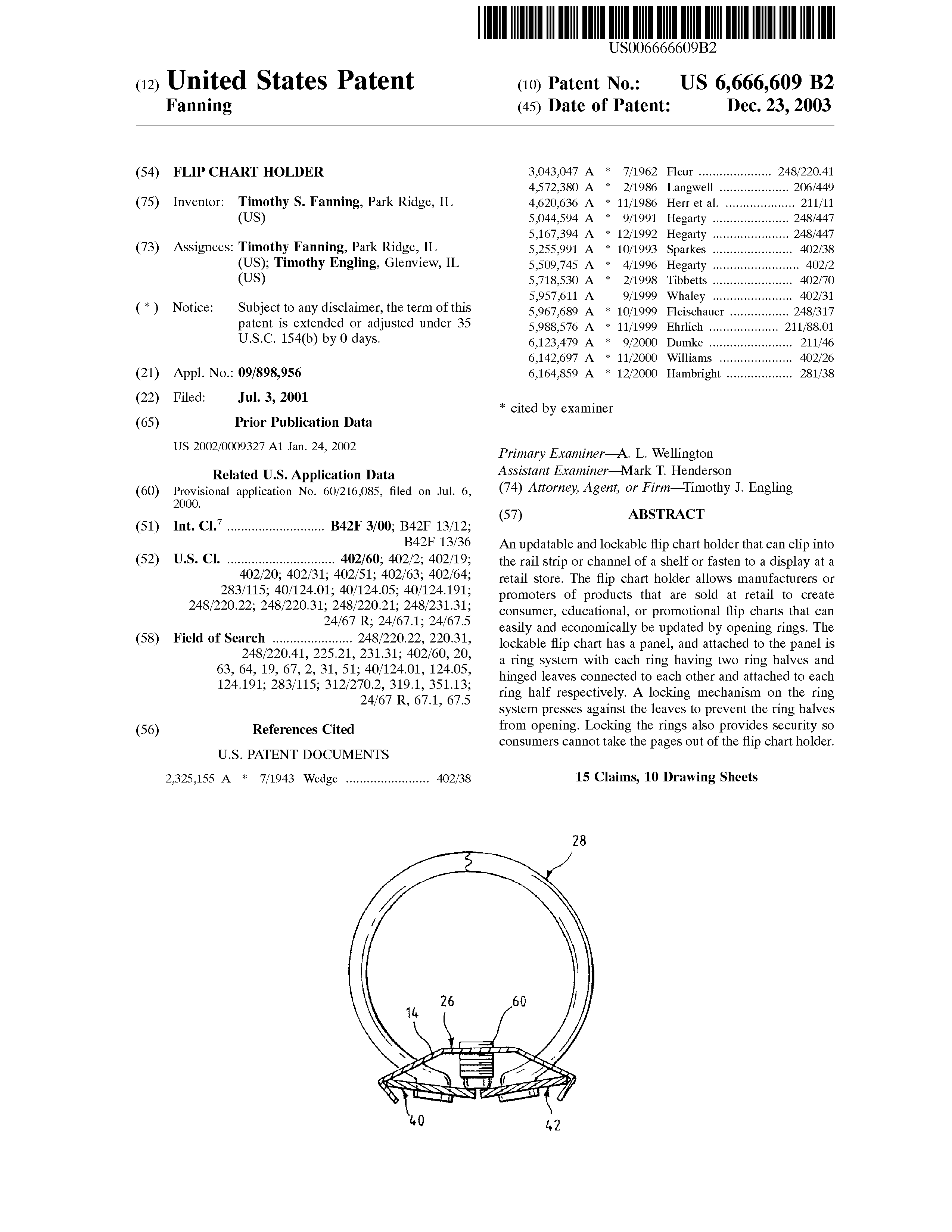

US 6666609

Asking price:

Make an offer
