VEHICLE TIRE TRACK SYSTEM

[Category : - Motors]
[Viewed 1320 times]

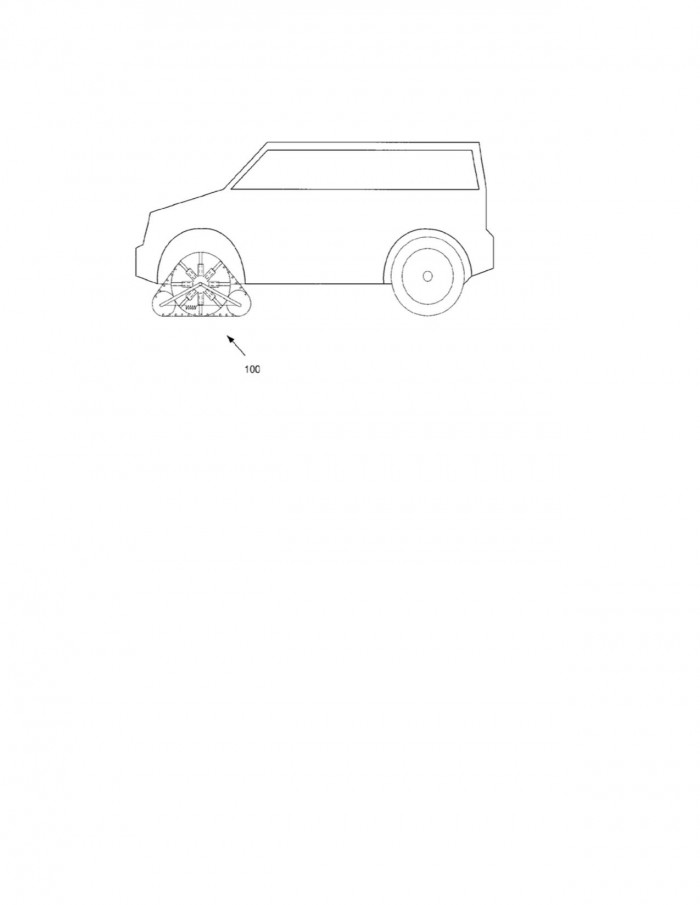

A vehicle tire track system having a tread hub including at least one spoke assembly positioned in a radial direction from the center of the tread hub, with the tread hub rigidly connected to a driven wheel of the vehicle, a belt having internal teeth disposed on an inside surface of the belt, at least two roller arms, each rotatably connected at a first end to the tread hub, at least two rollers, each rotatably connected to a second end of the at least two roller arms, and a tensioning device, disposed to provide tension between the roller arms. The belt is connected around the spoke assemblies of the tread hub and at least two rollers, and the belt is driven as the driven wheel of the vehicle turns the tread hub and force is transferred from at least one spoke assembly to the internal teeth of the belt.

Patent publications:

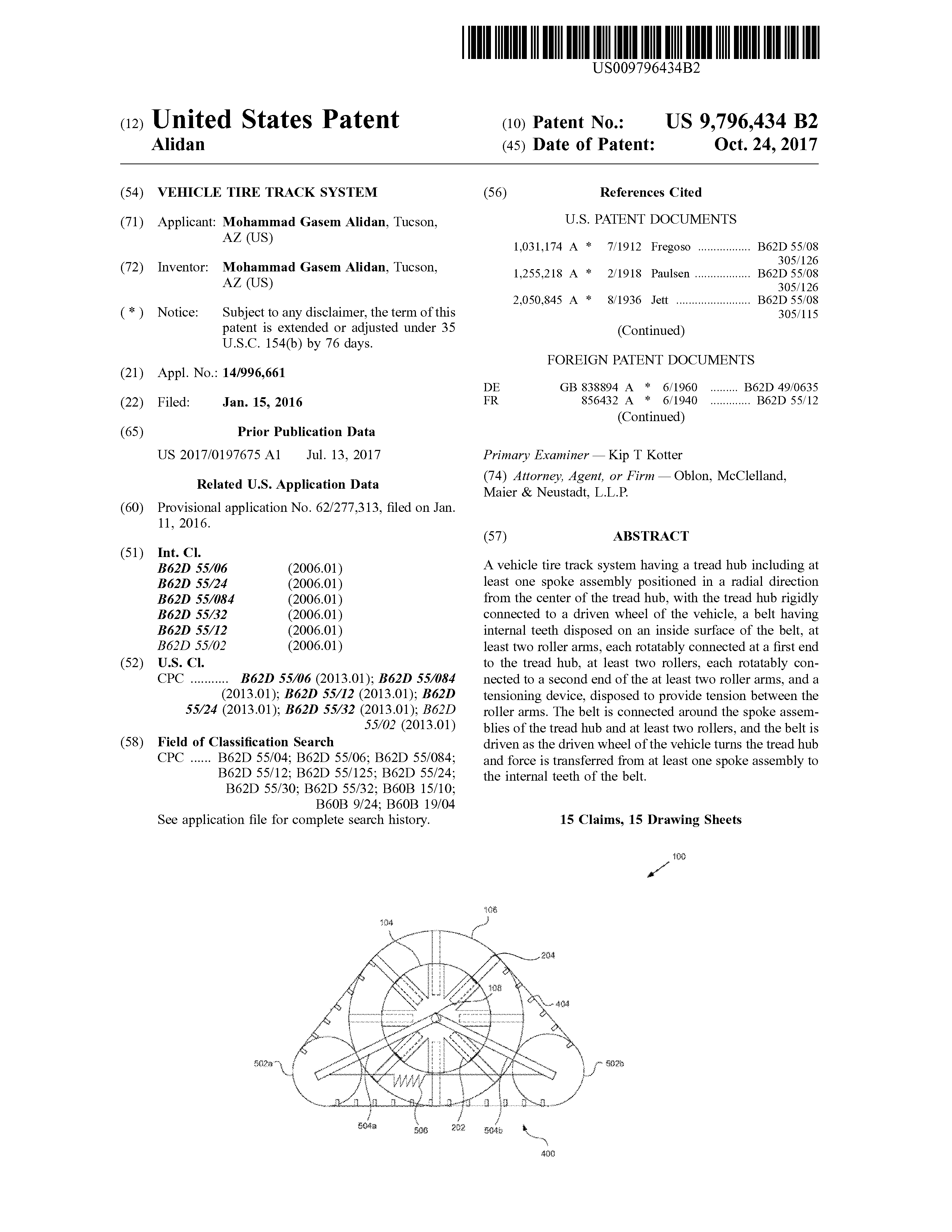

US 9796434

Asking price:

Make an offer

Rate this patent

Great invention
Liked: 1 times

Viewed: 1320 times

Seller:

mohammad29 (United States)
