IMPROVED PANEL FOR CONSTRUCTION AND/OR DECORATION.

[Category : - Construction Processes & Equipment]
[Viewed 425 times]

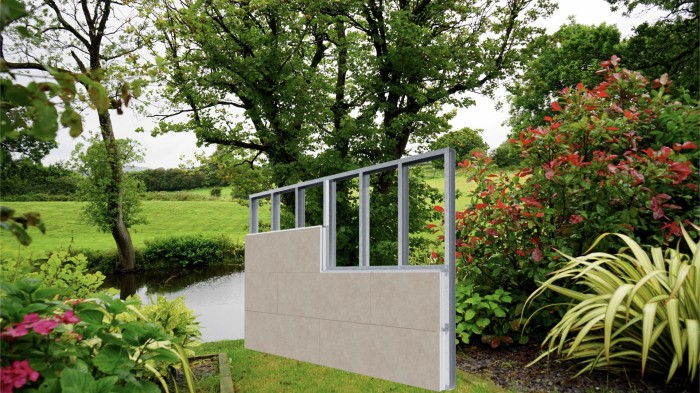

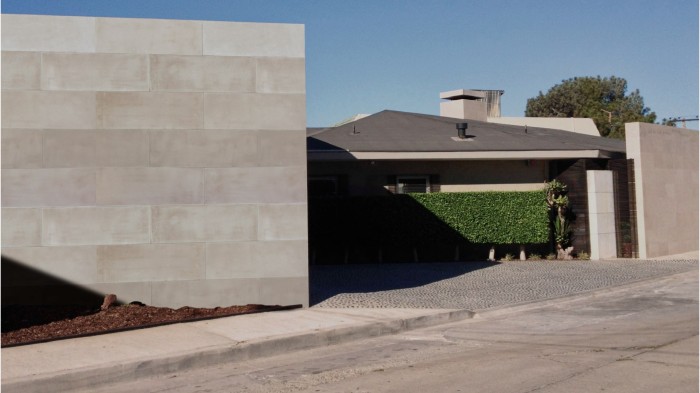

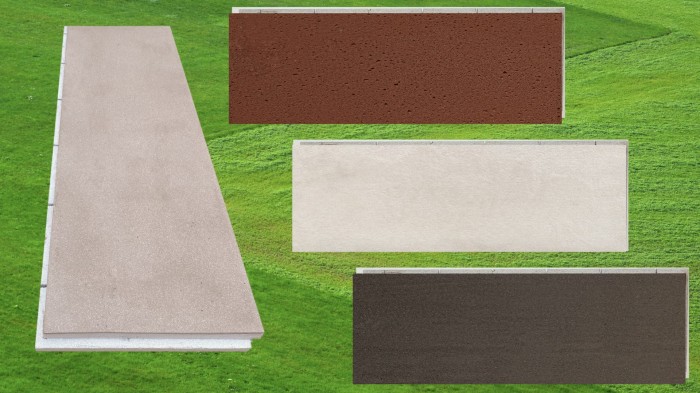

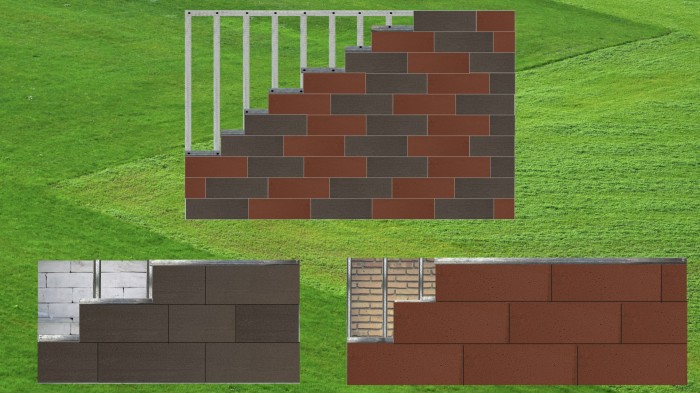

The invention relates to an improved panel comprising a weight resistant body made from polystyrene (EPS), into which are inserted at least two metal cores provided with internal grooving and securing means on the sides thereof for securing same to walls using structures, said body also including at least one longitudinal through-hole. In addition, a tongue-and-groove coupling system extends longitudinally along the sides of the body. The improvement results from the fact that one of the surfaces of the body is provided with a sheet of stone cladding (10) formed by a mixture of rock particles and a vinyl acrylic copolymer, a polyvinyl acetate resin, styrene and butyl acrylate copolymers, magnesium hydrosilicate, and water.rnThe current trend is to use lightweight construction systems to build and remodel with economical, elegant and functional designs that allow exterior facades and interior walls to be transformed quickly, easily and cleanly, with sustainable products that provide thermal and acoustic insulation, which can be achieved with the ISW architectural panel. Insulation Strong Wall: It is an innovative lightweight construction system, taking advantage of the best of traditional construction systems when installed on the same type of frames, with the great advantages of current technology. It is made up of an advanced and exclusive technology architectural panel made of EPS (expanded polystyrene), enhanced with a natural stone finishes, which offers resistant walls with the intrinsic advantages of having thermal and acoustic insulation and ease of installation of dry wall, and cement panels.rnThe improved panel is manufactured with different finishes and expanded polystyrene (EPS) which has a fire retardant agent that does not spread the flame. The panels provide thermal and acoustic insulation. Due to its modular configuration and a tongue-and-groove along its entire perimeter, the pieces are assembled together and provide hermeticity and homogeneity to the insulation, obtaining a resistant and completely flat surface.rnIt measures 1.20 meters wide by 40 centimeters high with a thickness of 7 cm.rnIt weighs from 4 to 10 Kg/m2 depending on the thickness and type of material used.rnIt is ideal for covering all kinds of areas in any construction quickly, elegantly, lightly, resistantly, with excellent thermal and acoustic insulation.rnIt can be used for the construction of Curtain Walls, Plugs, Perimeters, Partitions and Light Roofs, and many architectural forms where creativity is the limit.rnDuring the development of this project, samples of the product were manufactured and its viability and great advantages over traditional systems were verified.rnADVANTAGES OF THE IMPROVED WALLrnThe panel already has its final finish, which is stone, or ceramic tile, or Decoinova finish and others.rnQuick, simple and clean construction.rnYield in workforce: 100m2/Jor. (4 workers)rnThermal resistance: R value 44 (h*ft2*ºF/BTU).rnResistance to strong winds of more than 300km/h.rnExcellent sound insulation up to 65 db less noise from outside.rnAnti-earthquake construction system, due to its flexibility and low weight, the wall built with this system resists telluric movements.rnResistant to humidity and salt.rnUV resistant.rnResistant to rain and the action of acids.rnProtects the structure against thermal shocks.rnVery light wall (28.7kg/m2), 90% less weight than solid stone plates; minimal weight contribution to the structure.rnVery light coating 13.92 kg/m2rnFacility for hydraulic and electrical installations.rnIn the interior walls the panels can be removed and replaced to repair the hydraulic and electrical installations.rnIdeal for future extensions and remodeling.rnSafe product, does not emit flame or toxic gases.rnCompatible and adaptable to different construction systems.rnEnvironmental friendly.rnMinimum maintenance.rnrnIMPROVED WALL FOR REMODELINGrnThe ISW architectural panel is an unbeatable system for the remodeling of all types of constructions that, in addition to improving its appearance, provides excellent thermal and acoustic insulation, which offers great resistance to weathering since it acts as a barrier to preserve the walls of buildings, protecting them. against temperature, acid rain, smog and exterior noise, it also corrects the imperfections of the work.rnIt is very easy to install since it comes already finished and does not require any type of finish.rnAn important market for this product is that of remodeling, to cover walls and/or slabs of concrete, block, brick and all kinds of materials that have a high index of thermal conductivity, when covered with ISW, it insulates them from temperature and outside noise in addition to improving its appearance.rn
Link
Link

Financial information

Hace más de 120 años se empezaron a utilizar los sistemas constructivos ligeros, a base de paneles de yeso y de cemento, hasta el día de hoy siguen siendo los más utilizados por su sencillez y rapidez en la instalación. Nuestro sistema constructivo compite directamente contra estos sistemas, con las grandes ventajas de la era moderna: Tiene aislamiento Térmico, es más ligero, se instala más fácil y rápido, es mucho más limpio porque el panel ya tiene su acabado final y tiene un precio muy competitivo.
En México se construyen 127 millones de m2 por año de paneles de yeso y cemento, con un valor de $345 millones de US dólares.
Con mis inventos he ganado 2 premios internacionales:

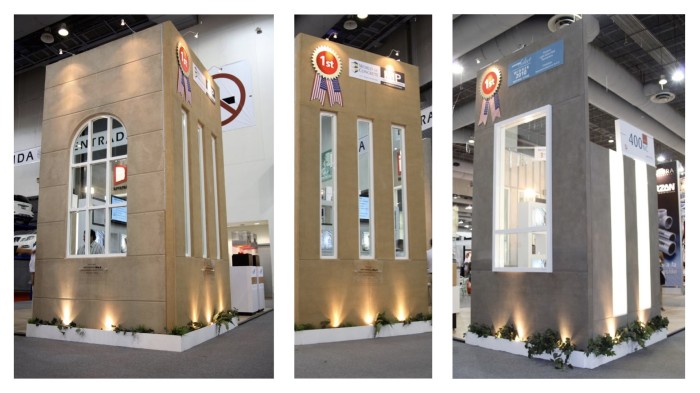

Primer lugar en WORLD OF CONCRETE (celebrado en las Vegas, Nevada, USA), como el producto más innovador y Primer Lugar en Coverings Select (celebrado en Orlando, Florida USA ), como el mejor producto de Piedra Natural.
1.- Estoy buscando un socio inversionista para fabricar y vender el producto en México en una primera etapa y en USA en una segunda etapa.
2.- Estoy dispuesto a licenciar la patente para la fabricación y venta del producto en México, la licencia incluye la capacitación y asesoría.
3.- Estoy dispuesto a vender el 100% del proyecto que incluye la patente y la marca DECOINOVA para su fabricación y venta en México.

Patent publications:

MX 359607

Asking price:

Make an offer
