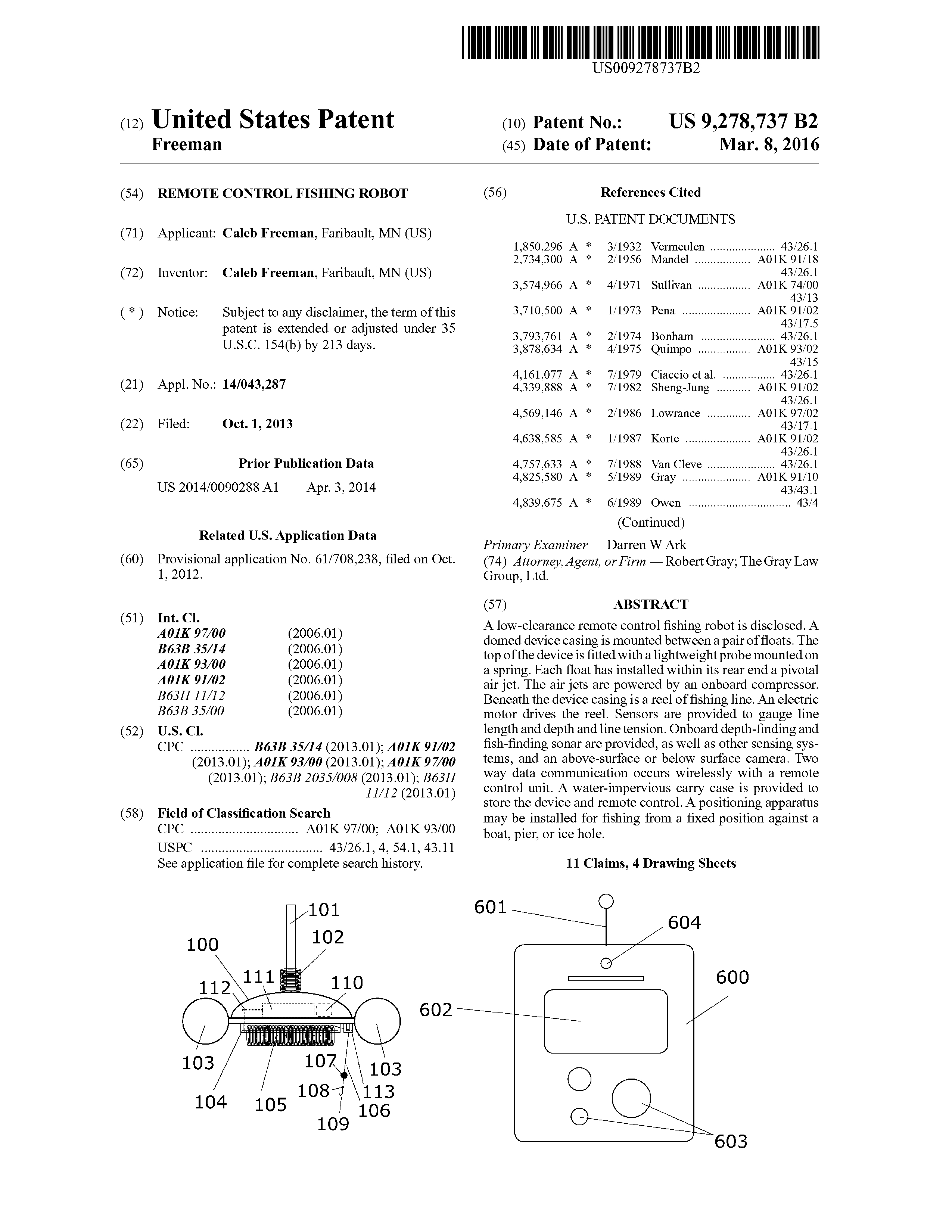

Patent 9,278,737B2 low clearance fishing robot
[Category : - Camping and Outdoors - Fishing and hunting- Boating]
[Viewed 7579 times]

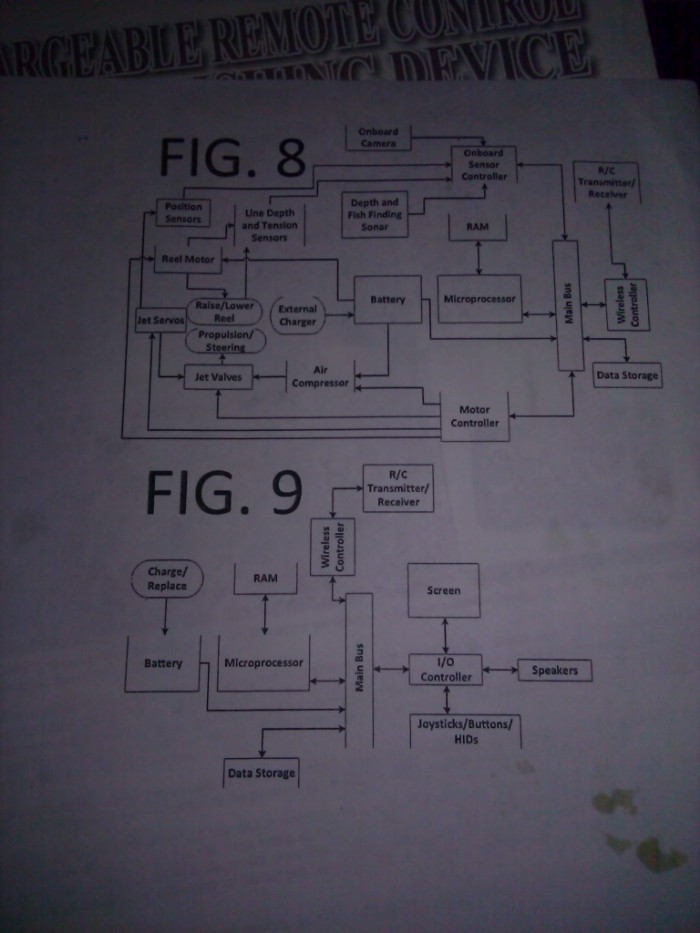

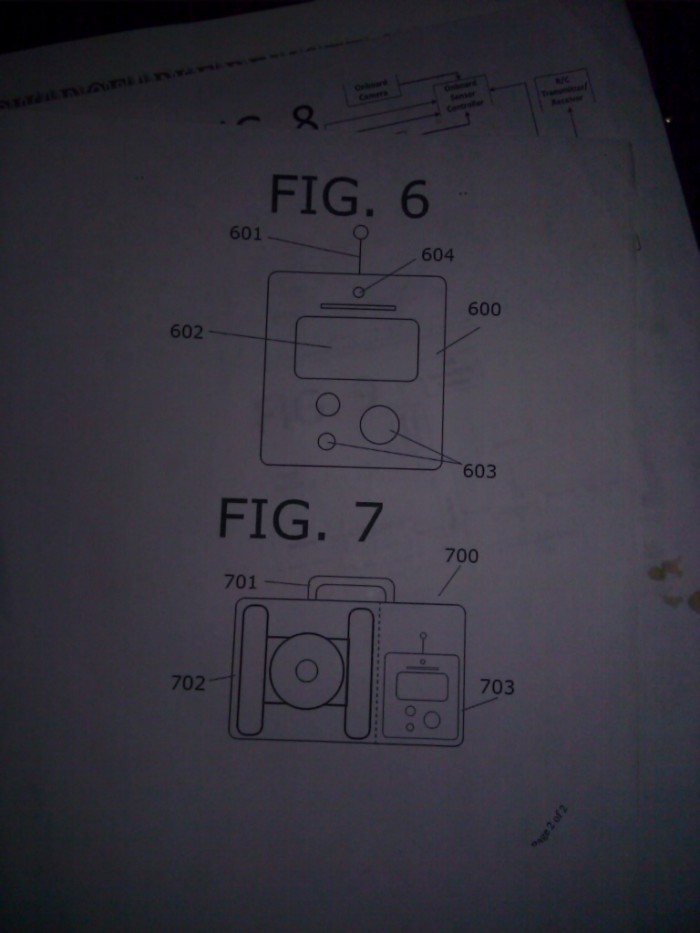

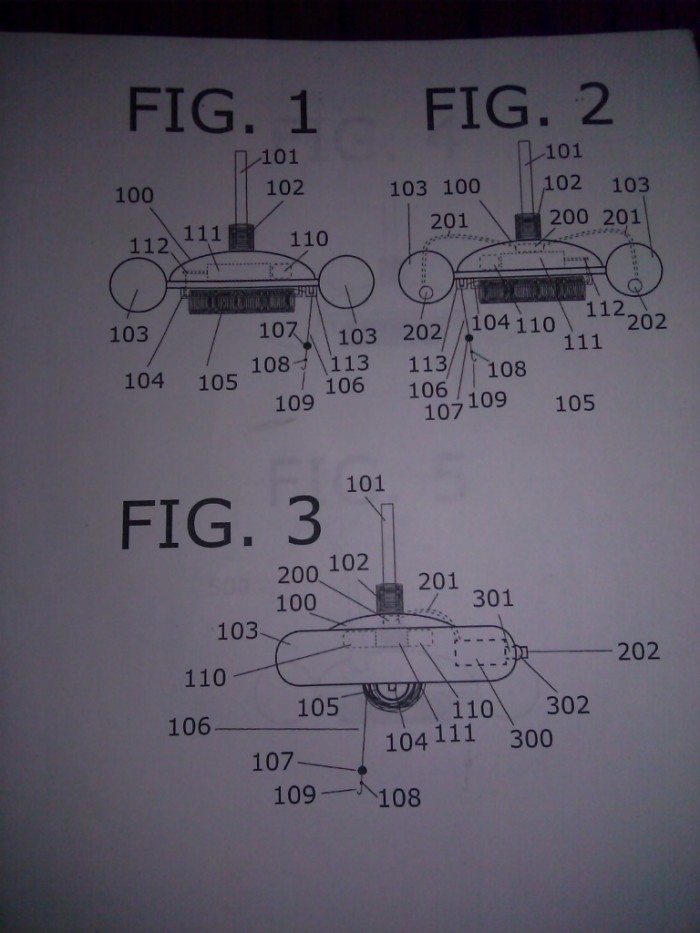

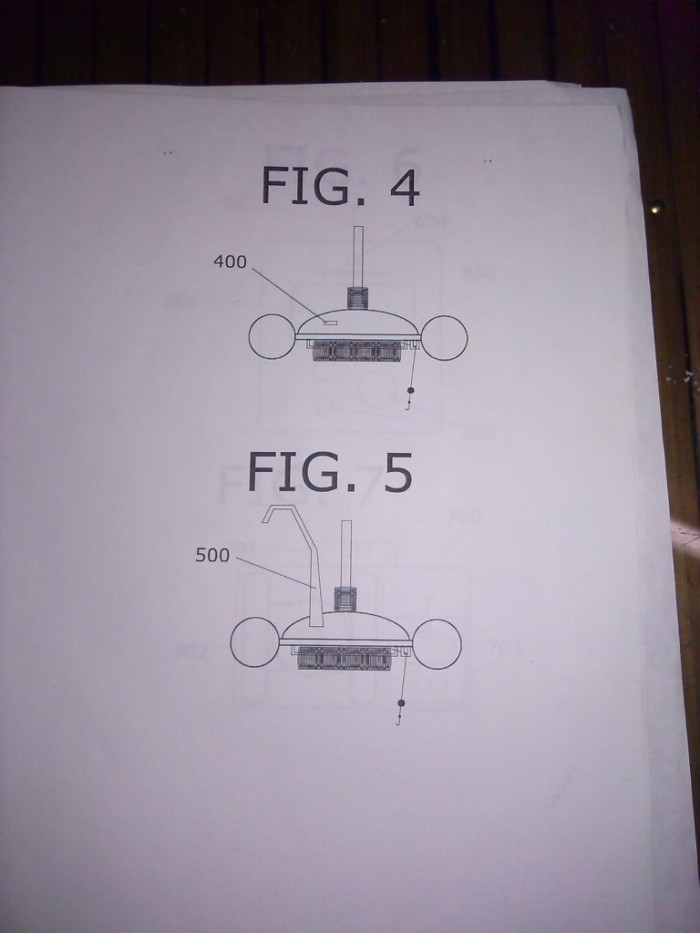

A low-clearance remote control fishing robot is disclosed. A domed device casing is mounted between a pair of floats. The top of the device is fitted with a lightweight probe mounted on a spring. Each float has installed within its rear end a pivotal air jet. The air jets are powered by an onboard compressor. Beneath the device casing is a reel of fishing line. An electric motor drives the reel. Sensors are provided to gauge line length and depth and line tension. Onboard depth-finding and fish-finding sonar are provided, as well as other sensing systems, and an above-surface or below surface camera. Two way data communication occurs wirelessly with a remote control unit. A water-impervious carry case is provided to store the device and remote control. A positioning apparatus may be installed for fishing from a fixed position against a boat, pier, or ice hole.
Financial informationThis invention will offer many new opportunities to the sport.Market potential is great. Would like to get a licensing agreement will consider an Assignment.
Asking price:
Make an offer
![](images_membres/10/10232-1413008005.jpg)
![](images_membres/10/10232-1413008048.jpg)
![](images_membres/10/10232-1413008086.jpg)
![](images_membres/10/10232-1413008181.jpg)
![](images_membres/10/10232-1461641668.jpg)
![](images/Patents-US/20/20140090288.jpg)
![](images/Patents-US/92/9278737.jpg)
