PORTABLE MOVABLE WORKTOP WRITING SLOPE

[Category : - HEALTH- Furnitures- Baby products]
[Viewed 1585 times]

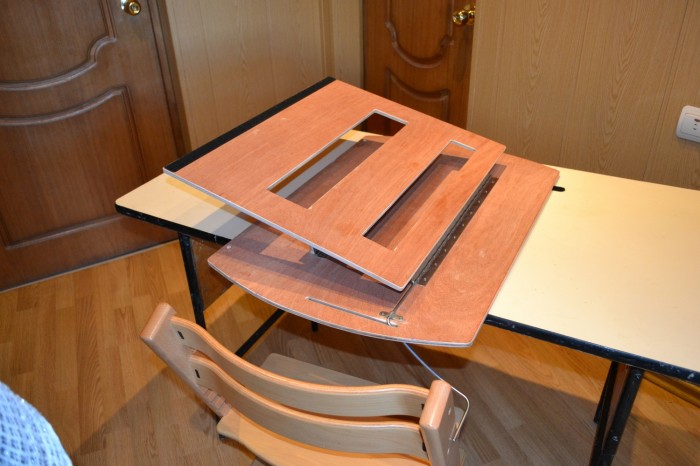

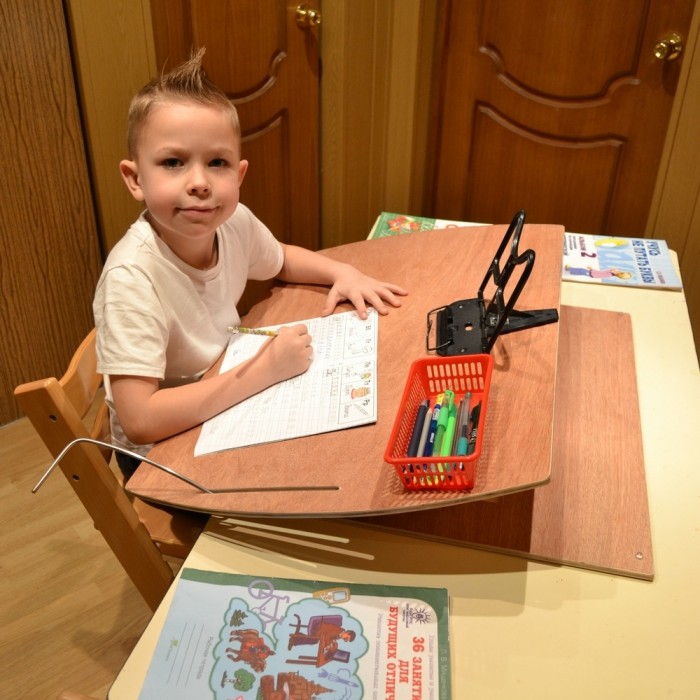

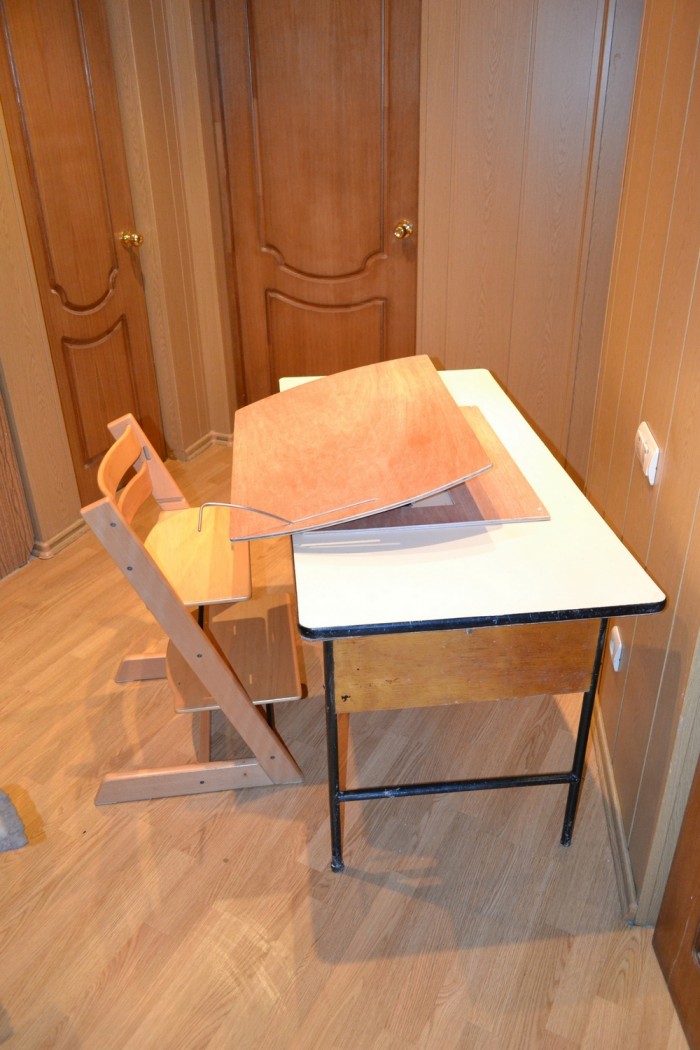

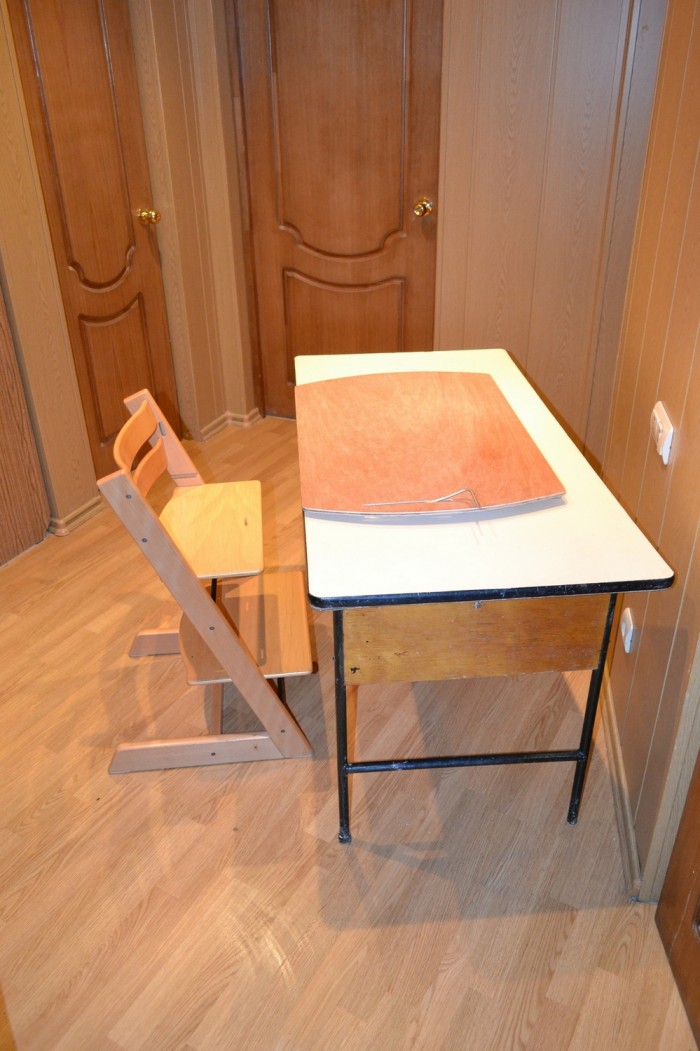

It is the movable table-top for learning which is a single movement of the handle will move to the user and rotated in incline position to establishing optimal comfortable position to keep good posture spine in childhood and adolescence.

Principle of operation VIDEO on YOUTUBE: Link

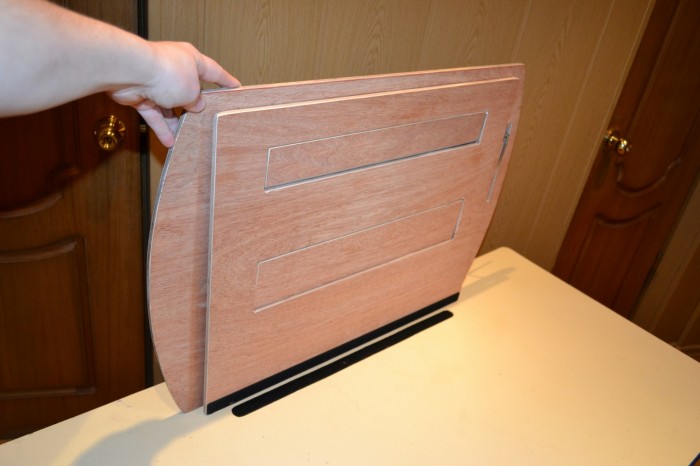

"PORTABLE MOVABLE WORKTOP WRITING SLOPE" is a revolutionary approach to the organization of learning place. We spoil posture and get curvature of the spine due to improper posture when writing. Benefits sloping writing surface is an indisputable fact, but in addition to the inclined surface of the students should moving chair to the table then the load is evenly distributed on the spine. Every time need to move chair to the table it is tedious and not always possible (heavy chair, adjustable chair with a footrest or combined desk-chair in the schools).rnTo solve this problem, I created the movable table-top for learning which is a single movement of the handle will move to the user and rotated in an inclined position. It is very convenient for study and this eliminating the negative impact of slouch on the spine, providing realy orthopedic effect.rnIn addition Portable Movable Worktop Writing Slope can be installed and removed in some seconds.

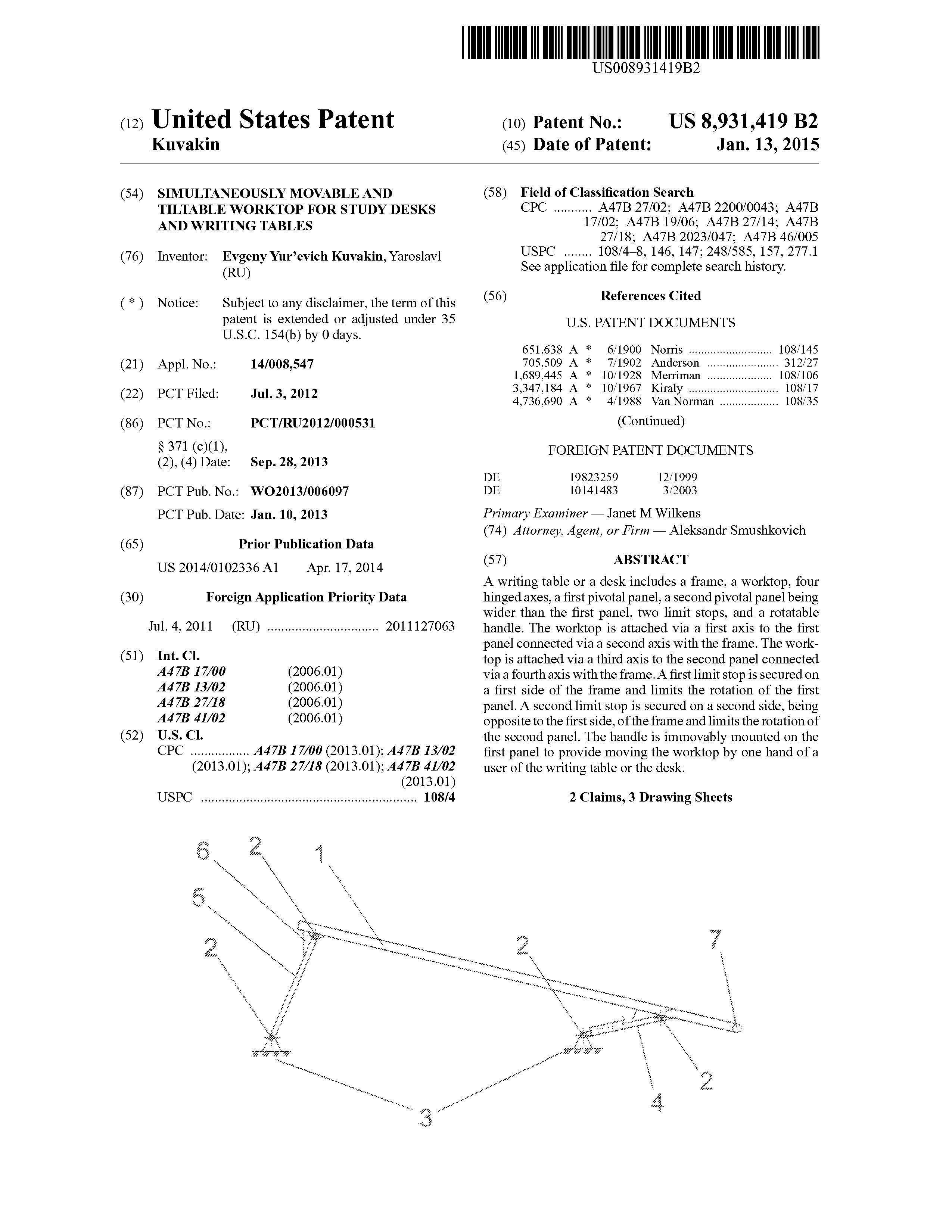

A writing table or a desk includes a frame, a worktop, four hinged axes, a first pivotal panel, a second pivotal panel being wider than the first panel, two limit stops, and a rotatable handle. The worktop is attached via a first axis to the first panel connected via a second axis with the frame. The worktop is attached via a third axis to the second panel connected via a fourth axis with the frame. A first limit stop is secured on a first side of the frame and limits the rotation of the first panel. A second limit stop is secured on a second side, being opposite to the first side, of the frame and limits the rotation of the second panel. The handle is immovably mounted on the first panel to provide moving the worktop by one hand of a user of the writing table or the desk.
