METHOD AND DEVICE TO SEPARATE COMPONENTS IN GAS, LIQUIDS
[Category : - Organic Chemistry- CONSTRUCTION HOME IMPROVEMENT- RENEWABLE ENERGY]
[Viewed 1691 times]
====Goals: gravimetric separator for mixtures of fluids, gaseous or liquid, utilizing circuit with reverse return, of three-dimensional base with limitation of the transverse motions; ====Usable in: chemical and pharmaceutical industry, oil and petroleum industry, water treatment and purification industry, purification of water bodies in rivers and lakes, the biogas industry and algal cultivation, ====All IP set: Link . ====This invention relates to a method and to a device for the implementation of said method, to separate the components that are inside mixtures of liquids, gases and vapors, resorting to gravimetric principles and with (pervasive and distributed) contrast to transverse motions, producing much higher efficiency indexes, also thanks to the dynamics of three-dimensional reverse return. The method is of the type which provides for the execution of the following steps: • creation of a horizontal flow of said fluid mixtures, wherein said fractions are arranged on different levels as a function of their density; • taking said fractions through taking means positioned on each of said levels; the separation of said fractions being obtained by the only effect of gravity and of the hydrostatic thrust which derives therefrom and it is characterized by the use of means fitted to delimit the areas in which the flow is exclusively vertical and not disturbed by said horizontal flow, in such a way as to promote said separation, because not disturbed by turbulence and transverse motions, said vertical movements generating additional horizontal formed by fluids of different density. The device (A) is of the type which includes: • means fitted to create a horizontal flow of said fluid mixtures, in such a way that said fractions are arranged on different levels as a function of their density; • taking means positioned on each of said levels, fitted to individually take said fractions; wherein the separation of said fractions is obtained by the only effect of gravity and of the hydrostatic thrust which derives therefrom and it is characterized in that it comprises a first and a second block (B, C), each one of which comprises a plurality of vertical channels, fitted to delimit the zones in which the flow is exclusively vertical and not disturbed by said horizontal flow, said blocks (A, B) being inserted in a container, so as to locate: • a first gap (2), between said blocks (B, C); • a second gap (3), positioned above said first block (B); - a third gap (4) located below said second block (C); being provided: • input means (5, 5a), positioned in correspondence with a first end of said first gap (2); • taking means (6, 6a), (7,7a), (8, 8a) positioned in correspondence with a second end of said first, second and third gaps (2, 3, 4); when all the volume comprised in said container (1) is filled with said mixture of fluids of different density, said fluids being: • run into said container (1) through said input means (5, 5a); • taken from said container (1) through said taking means (6, 6a), (7,7a), (8, 8a), said taking being differentiated in function of the different density of the fluid.
Financial information
============> IP available on each country: PCT (150), Paris Conv. (173)
===Obj: License and first refusal on priority rights in the national phase
===Market (fifth part on 10y): 600 M€ per 50 million inhabitants
===Brand: Guaranteed registered trademark in Italy, ®GUPC (General Utilities Performance Contract)
Patent publications:

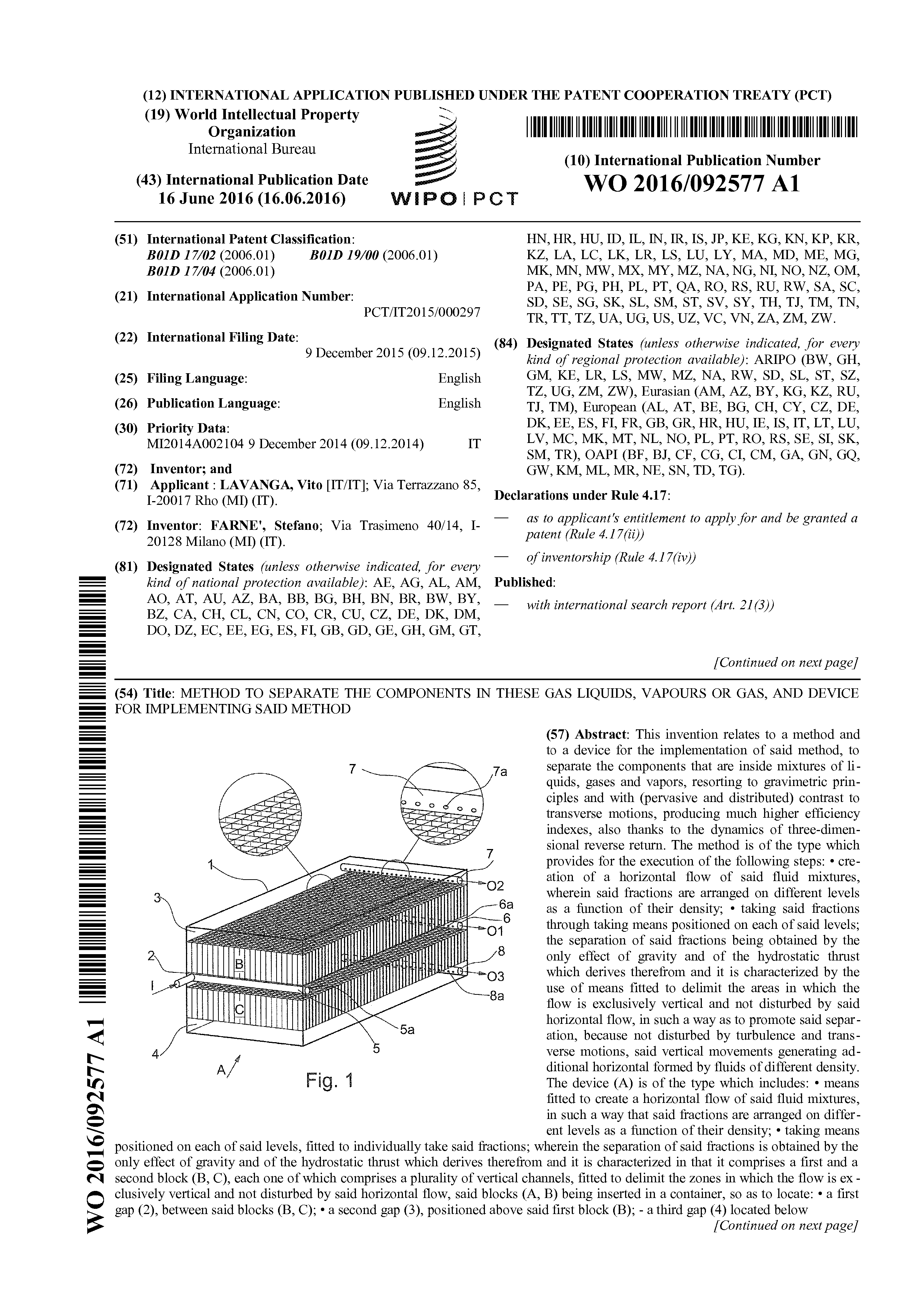

WO 2016092577
Asking price:
110,000 USD
110,000 USD
Great invention
