Router Guide

[Category : - Tools]
[Viewed 1176 times]

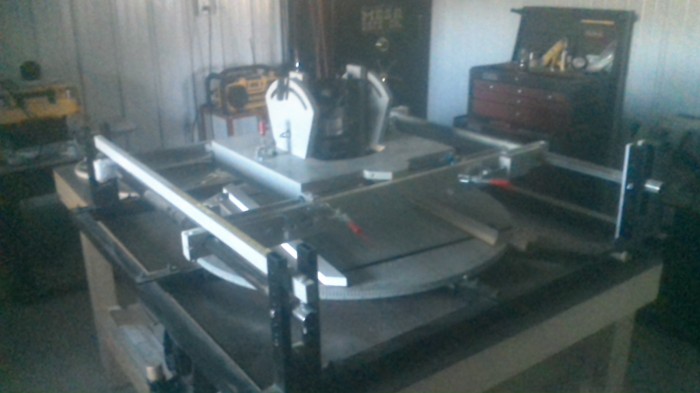

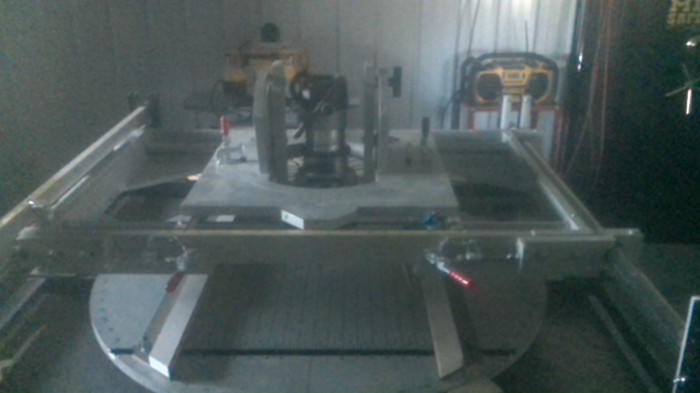

My design will control a wood working router in the x-y and z axis and also a variable down angle . router base allows router to pivot side to side 45 degrees each way while routing and can be locked in place. The router and base are located over a circular wheel which can rotate 360 degrees , segmented every one degree. . the wheel (work surface ) can be locked in place for straight line routing , pin routing or used like a traditional router table by using the work surface holding fixture as a guide fence. . The wheel can also be unlocked for circular routing in conjunction with the x-y-z axis and the pivoting router base to route complex projects or just simple routing jobs. Another feature is the router in the base can also be rotated 360 degrees and be locked at any angle you choose. . I believe every woodworker will want one of these.

Patent publications:

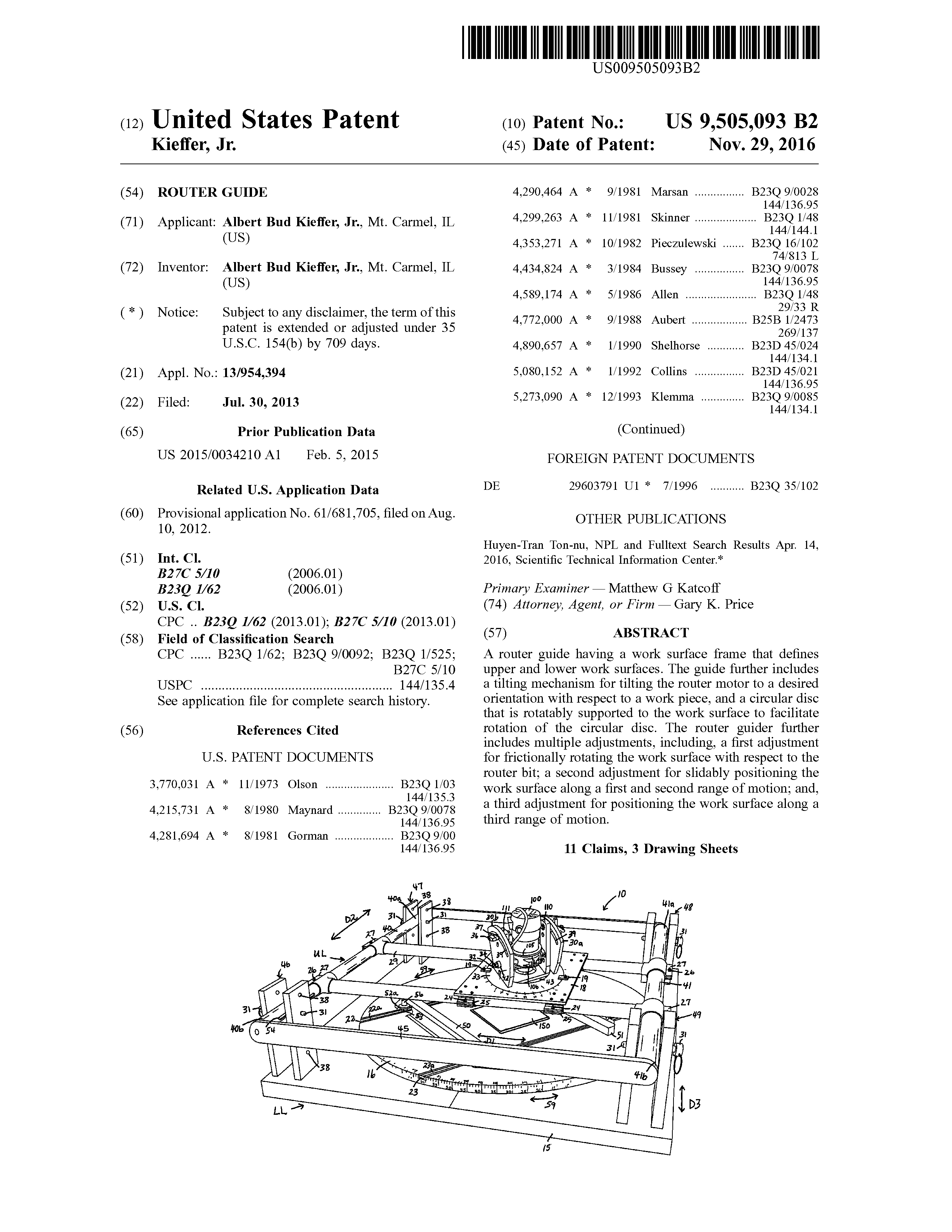

US 9505093

Asking price:

Make an offer
