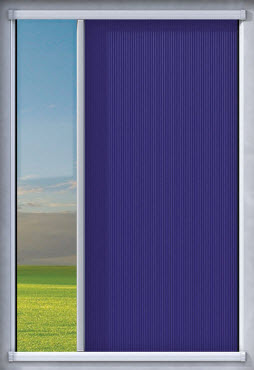

INTEGRATED MAGNETIC BLIND

It is a pleated blind, integrated into a double glazed sealed unit. The blind is protected from damage and is virtually maintenance free, making it ideal for student accommodation, hospitals, hotels, care homes and schools. It is available in a wide range of sizes and a choice of fabrics.

BENEFITS

Discreet and stylish - does not intrude into the room
Operation can be in any pane – vertical or horizontal
Operation can be in any direction
Top-down or bottom-up
Left to right or right to left
No mechanical contact with glass
Designed for one handed operation
Magnetic operation decouples - protecting the blind mechanism from accidental damage
Blackout, dim-out and screen fabrics are a available
Twin fabrics can be installed in the same window
Position the blind anywhere - eliminate glare without cutting out light
Sealed away for life – no blind cleaning or maintenance
No cords – truly child friendly
Simple and robust for reliable operation and a long life
Installed with the windows
Lifetime Warranty
On de-commissioning components are easily separated and fully re-usable or recyclable

SPECIFICATION

Intrashade interstitial blind mechanism and fabric
Fabric support rails: White powder coated aluminium 16mm x 16mm in section
Rail end gliders: Injection moulded white U/V stabilised acetyl with brass bush bearings, lock in feature and fabric retaining device
Guide rails: Combined warm edge spacer and track manufactured from glass reinforced PP
Magnets: 16mm diameter Neodymium-Iron-Boron with silver finish
Fabric: 16mm cellular structure fabric selected from the range
Width: Minimum 130mm. Maximum 1200mm
Drop: Minimum 130mm. Maximum 2000mm
Stack height when raised: 3% of blind drop + 55mm
Warranty: Components 10 years fit for purpose

FEATURES

Fits 20mm double glazed unit
Internal 20mm combined warm-edge spacer and track
16mm fabric head-rail to allow 2mm gap to glass
Fabric header rail ends designed with brass roller bearing for smooth operation
Parallel motion exterior grab rails
Magnetic coupling between grab rail and fabric header rail
Wide choice of fabrics: blackout, dim-out and screen fabrics – in an extensive range of colours

Financial information

The patent owner is looking for outright sale and has sold £100,000 of these blinds in the first project, so it is proven and unique.

There is a good website and trademarks and is patent granted in UK and Europe.

This has been valued and price is USD$350,000 but we are offering at USD$100,000 for the whole concept but the inventor is open to realistic offers to speed sale

Patent publications:

No publication

Asking price:

100,000 USD
