BKEYPAD BW1

[Category : - Computers and computer accessories ]
[Viewed 687 times]

BKEYPAD

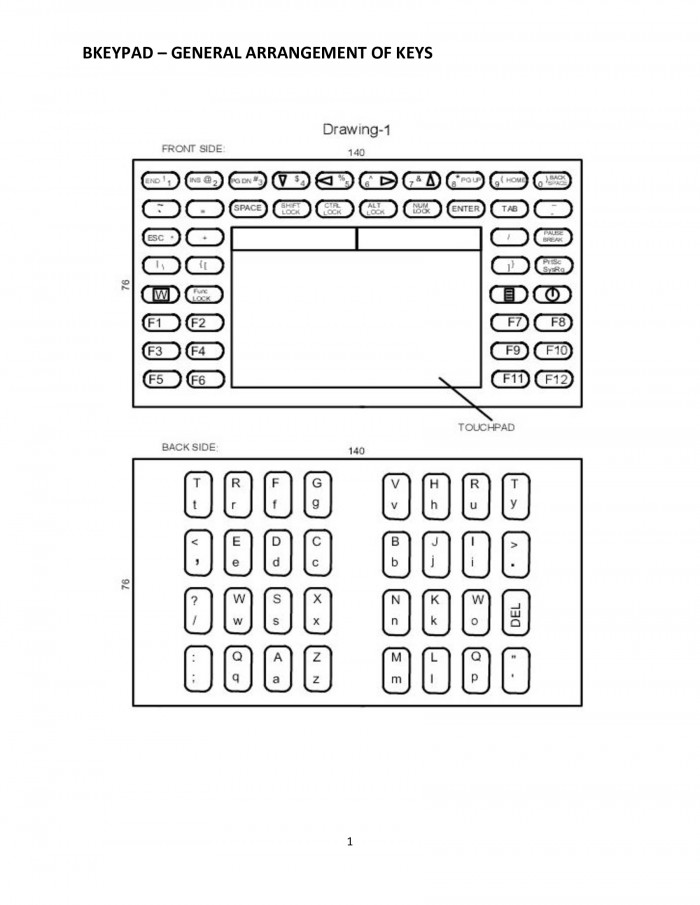

BKEYPAD is a dual sided hand held computer keypad which can be operated by 10 fingers. has 46 keys, programmed to be equivalent to a normal 84 keys QWERTY keyboard and arranged keys as given below: 12 numbers of command keys are arranged on the front side of the keypad as shown in the drawing-1, which will be operated by two thumb fingers. Installations of navigation touchpad and two click-keys on the front side of the keypad as shown in the drawing-1, which will be operated by two thumb fingers. Pasting of backside keys arrangement label on the touchpad as shown in the drawing-1 by which the operator can locate the keys on the backside and type them blindly. 32 numbers of keys on the backside, programmed to be used as alphanumerical and functional keys as mentioned below, which can be typed blindly using 8 fingers as given below and shown in the drawing-2. 32 numbers of backside keys are arranged into two groups, each group has 16 keys and located near to left and right edges of the keypad as shown drawing-1. Each finger has to press only 4 keys without any struggle or strain on the fingers. Out of 32 numbers of keys on the backside, all the 32 keys are programmed to be used as alphabetical keys, while Numlock key and FuncLock key are unlocked as shown in the drawing-2. Out of 32 numbers of keys on the back side, 12 keys are programmed to be used as numerical keys, while NumLock key is pressed and locked as shown in the drawing-2. When Numlock key is locked all other remaining keys on the backside will be disabled. When NumLock key is locked FuncLock key will be unlocked. Out of 32 numbers of keys on the back side of the keypad, 29 keys are programmed to be used as functional keys while FuncLock key is pressed and locked as shown in the drawing-2. When FuncLock key is locked ail other remaining keys on the backside will be disabled. When FuncLock key is locked NumLock key will be unlocked. Overall size of the keypad is fixed at 140mm x 76mm, which is a suitable size for hand held operation. Since this is a hand held keypad no need to bend towards the table for typing by which Operator can comfortably sit or stand and enter data. While typing, all the fingers and wrists are at its normal position which will reduce the stress and strain on fingers and wrists. Since this is a light weight, small size gadget, hand held operation will be comfortable. Bluetooth/wireless model will be useful for remote operation.
BKEYPAD BW1

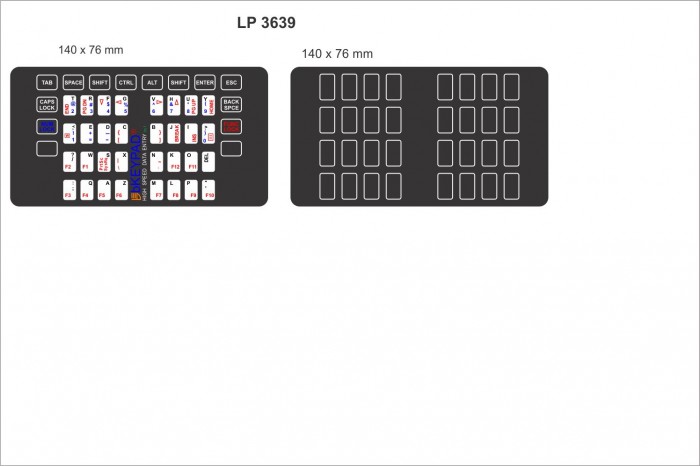

BKEYPAD BW1 is a dual sided hand held computer keypad which can be operated by 10 fingers, has 76 keys, programmed to be equivalent to a normal 84 keys QWERTY keyboard. 44 numbers of command, function and numeric keys are arranged on the front side of the keypad which will be operated by two thumb fingers. Installations of navigation touchpad and two click-keys on the front side of the keypad, which will be operated by two thumb fingers. 32 numbers of keys on the backside, programmed to be used as alphabetic keys, which can be typed blindly using 8 fingers. 32 numbers of backside keys are arranged into two groups, each group has 16 keys and located near to left and right edges of the keypad. Each finger has to press only 4 keys without any struggle or strain on the fingers. Overall size of the keypad is fixed at 140mm x 76mm, which is a suitable size for hand held operation. Since this is a hand held keypad no need to bend towards the table for typing by which Operator can comfortably sit or stand and enter data. While typing, all the fingers and wrists are at its normal position which will reduce the stress and strain on fingers and wrists. Since this is a light weight, small size gadget, hand held operation will be comfortable. Bluetooth/wireless model will be useful for remote operation.

Financial information

This product is available for sale or license. Since this is an International published patent, buyer can apply patents in 152 countries and manufacture and sell all over the world.
I am looking for companies who is interested to buy or license this product who has the manufacturing capability.
Patent owner is looking for manufacturers in different part of the world who is interested to manufacture this keyboard.
Please contact the Patent Owner:
Name: SURESH THACHOLI KUDAI
Email: [Use the button below to contact me]
Mobile: +91 9960691698

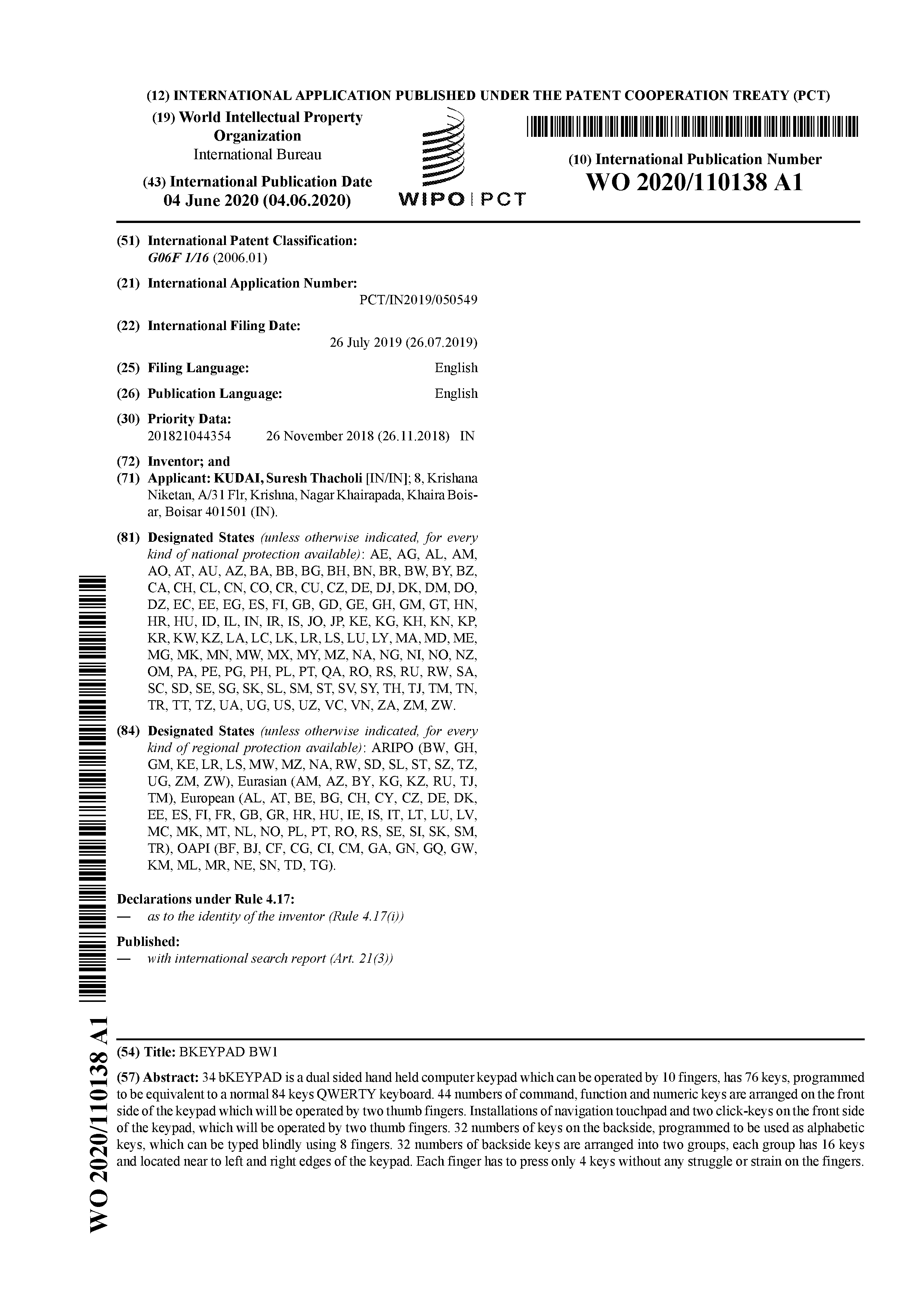

Patent publications:

WO 2020110138

Asking price:

75,000 USD
