SECURE LOCKING HUB SYSTEM/TRAILER HUB LOCK/AXLE LOCK
[Category : - OTHER- Construction Processes & Equipment- DESIGN PATENTS]
[Viewed 879 times]
A secure locking hub system for locking a wheel hub of a vehicle to an axle is provided. The system has a locking ring that may be moved between locked and unlocked configurations. When locked, the hub is in a rotationally fixed position relative to the axle on which the hub is mounted. With the hub locked to the axle, the wheel will not rotate and the vehicle thus cannot be moved. The system additionally has a security lock that prevents any unauthorized individual from unlocking the wheel hub, thereby preventing theft of the vehicle.
Trailers pulled by powered vehicles may be used to transport a variety of goods or materials, such as cargo, tools, equipment, vehicles, or livestock. Thus, many types of trailers have been designed for different purposes. These may include enclosed cargo trailers, flatbed trailers, boat trailers, vehicle trailers, livestock trailers, or dollies. Other types of trailers may be adapted to provide shelter, such as construction trailers or travel trailers. Trailers are typically attached to a powered vehicle using a hitch, which is used to tow the trailer behind the motor vehicle from location to location. The trailer may be detached from the vehicle by removing the trailer from the hitch.
Trailers are often a target of theft due to the value of the trailer itself as well as the value of items stored within the trailer. Hitch coupler locks are commonly used to prevent theft of trailers by securely latching a coupler onto a ball on the trailer hitch and locking the coupler into place. A coupler lock system locks a trailer to a vehicle hitch when the trailer is hitched to the vehicle and may also prevent an unhitched trailer from being hitched to a vehicle. However, hitch coupler lock systems generally use an exposed lock, such as a padlock, which may be cut by lock cutters or otherwise compromised in order to facilitate removing a hitched trailer from a vehicle and/or allowing an unhitched trailer to be hitched to a vehicle for the purpose of stealing the trailer. In addition, if the coupler or the latching mechanism of a coupler lock system fails, the locking system may be rendered inoperable. Further, coupler lock systems are used strictly for trailers having a coupler designed to be latched onto a ball hitch and thus cannot be used to prevent theft of a motorized vehicle, such as a car, motorcycle, recreational vehicle (RV), golf cart, electric conveyance vehicle (ECV), or similar types of vehicles.
Some attempts have been made to provide a security system for locking a vehicle wheel hub to prevent theft of the vehicle. In one known system, a keyed lock may be utilized to actuate a locking ring that locks a hub to an axle. The locking ring is operably connected to a cam attached to a lever that rotates in response to input from a key used to operate the lock. One potential problem with such a system is torque applied to the lock to actuate the locking ring, which may affect reliability of the system over an extended period of time.
Accordingly, a need exists in the art for an improved system for locking wheel hubs in order to prevent theft of various types of conveyance vehicles.
Financial information
For sale, license and royalties are optional.
Three Patents is For Sale, the economical & financial information acquired would be based on individual research & actual sales rendered by potential buyer(s), therewith; it has excellent market potential based on the fact that millions of vehicles pulling trailers, campers, tow dolly, etc... by consumers within this targeted market would need this type of device as invented.
Patent publications:

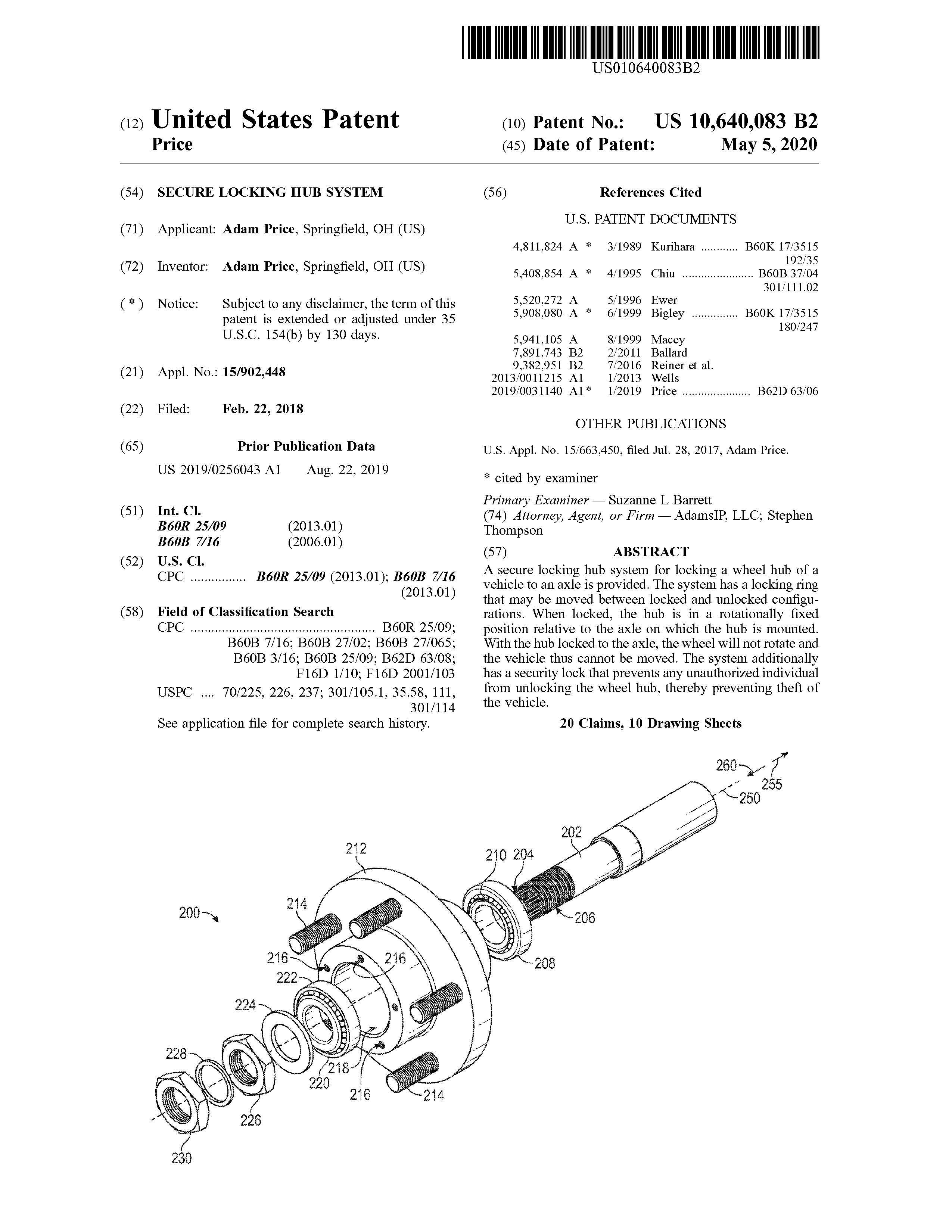

US 10640083
Asking price:
Make an offer
Make an offer
Great invention
