Hydraulic Turbine Motor

[Category : - Motors]
[Viewed 479 times]

We`re excited to announce that we've obtained a patent for the world`s first Hydraulic Turbine Motor which will evolve hydraulic motors to turbine and offer the market a more efficient and cheaper alternative.

There's no doubt that this'll be a complete surprise to the industry. I'm assuming that the water turbine created just enough confusion so the concept was never considered.
This motor can also be considered the 1st piston / turbine hybrid motor whereas it functions as a turbine but relies on a method of valving and timing to function as referenced in patent paragraph 0032 .
There`s many advantages over conventional hydraulic motors such as being cheaper to manufacture, quieter, a longer life cycle and less chances of metal contamination. All due to the fact that there's only one moving part which is free of friction aside from the bearings.

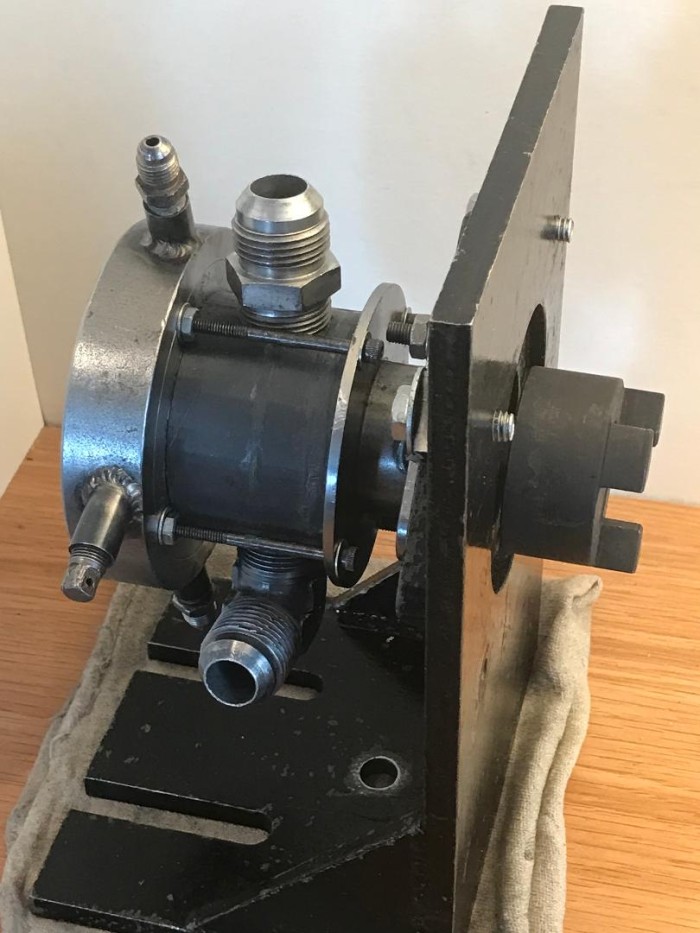

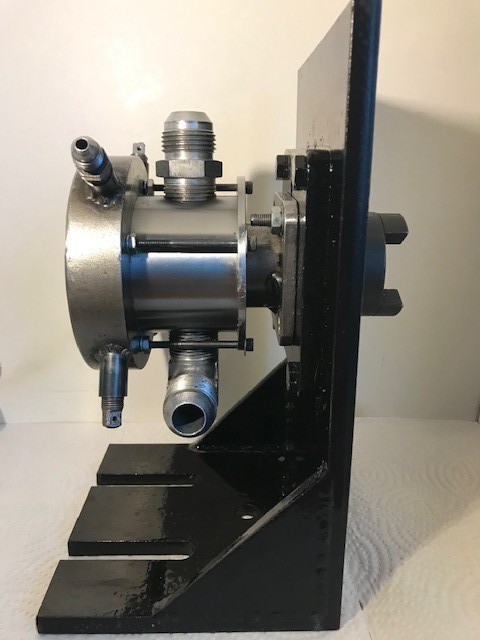

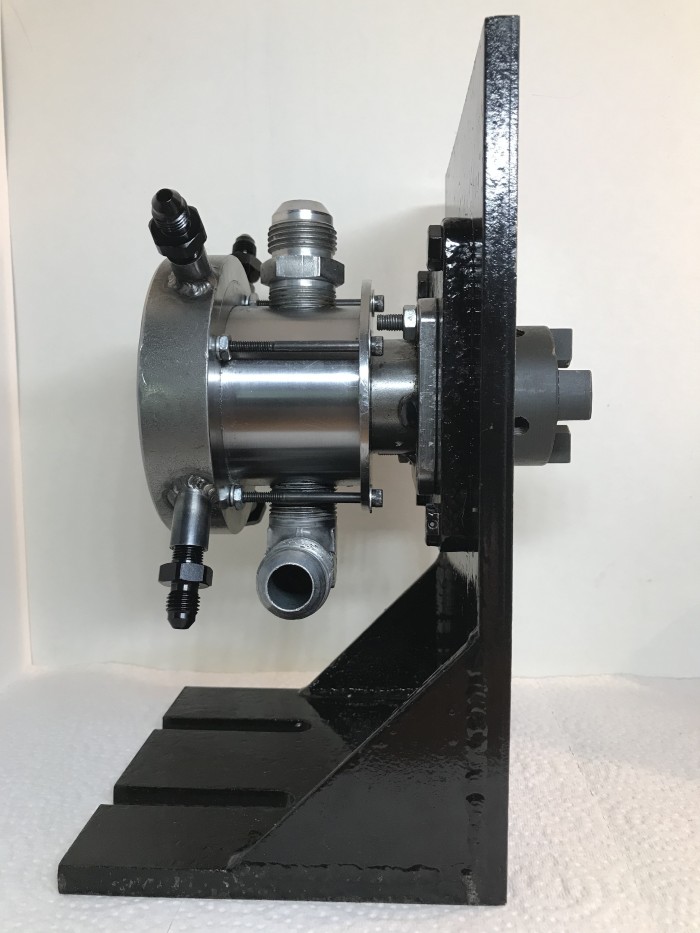

We`ve been unable to have it load tested locally due to liability concerns but no-load output is 3150.rpm using 1.k psi@ 10.gpm. and using only 2 of the 4 turbine inlets. The turbine measures 1/4" x 2.0" in diameter.

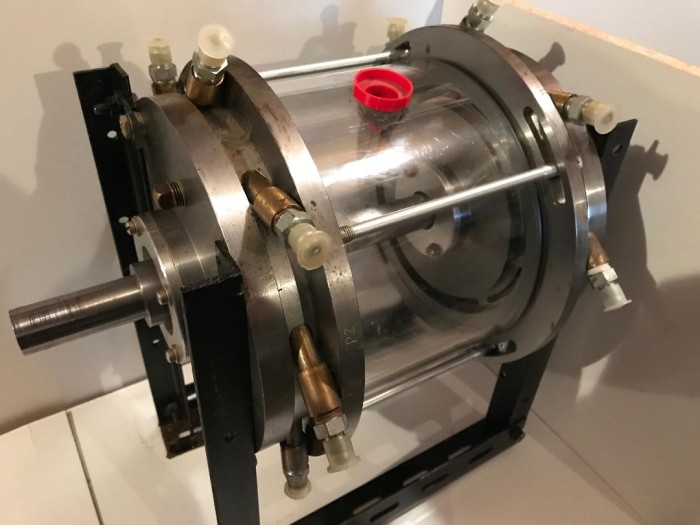

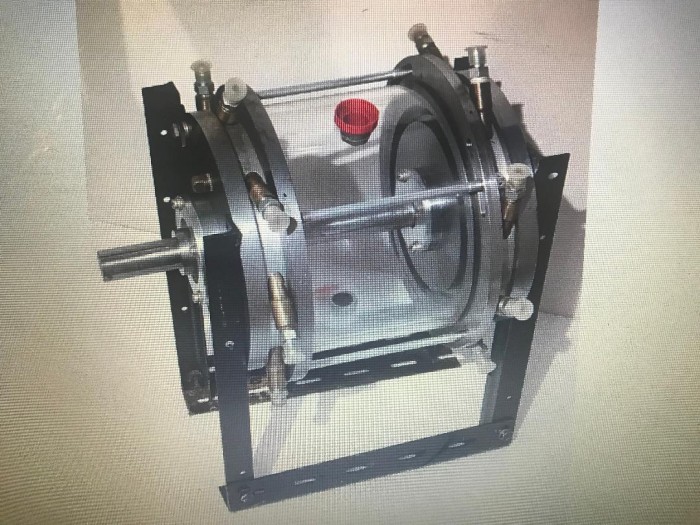

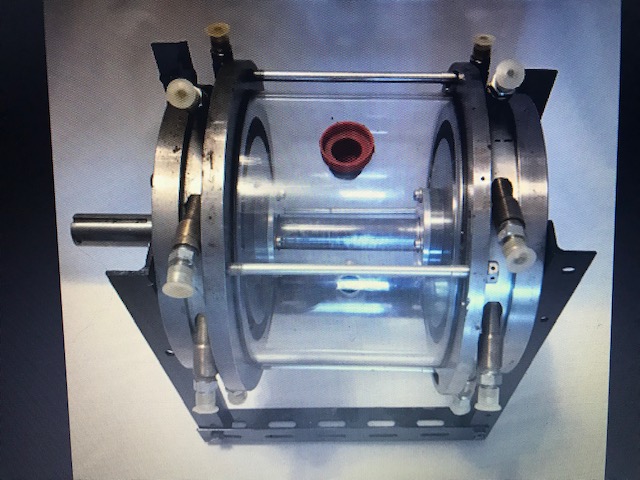

Also included are pics of dual motor configurations which shows methods of augmenting the output and being reversable.
Applications are numerous and it'll just be a matter of scaling and calibration to achieve a required output. This would involve varying the number of turbine inlet ports and the corresponding number of blades and exhaust ports. It would also involve varying orifice and port sizes, motor displacement. , number of motors and the inlet pressure .
My own experience in this field includes 18 years testing and calibrating hydraulic airframe components for a major Cdn aerospace company which includes hydraulic piston winch motors.
Other markets such as use as a pneumatic motor and city water applications using plastic motors are very feasible.
Thank you for your time.

Bob Stephens

Patent publications:

US 20240280072

Asking price:

Make an offer
