Weight Wheel Gravity Accelerator Device for Producing Electricity

[Category : - ELECTRICITY & LIGHTING]
[Viewed 75 times]

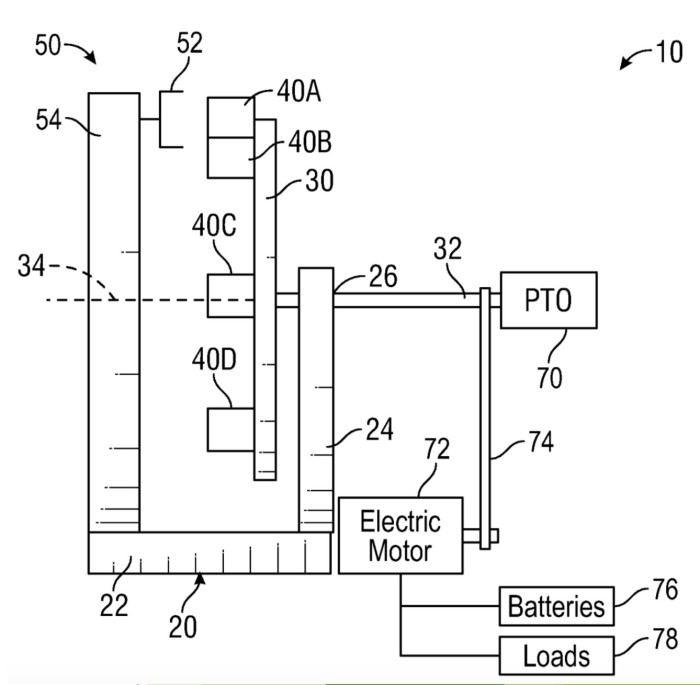

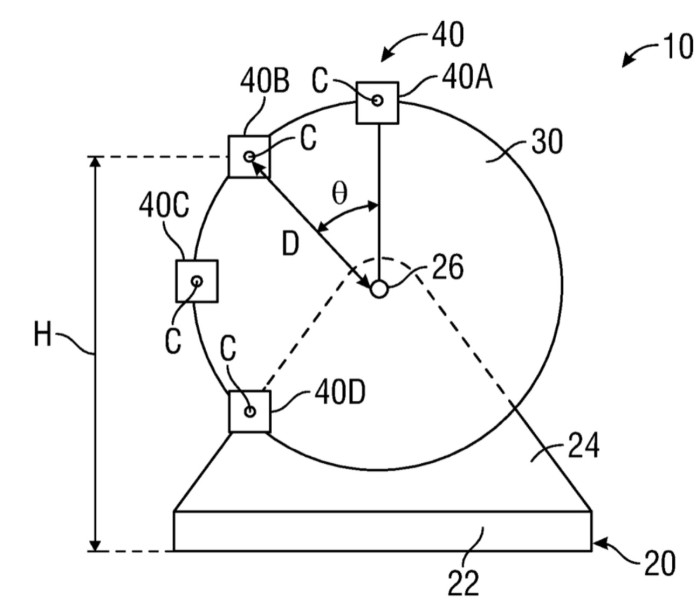

The weight wheel gravity accelerator device is a device that efficiently produces electricity and it is intended for utility electricity generation. The device includes a wheel that spins from gravity to produce electricity, where many weights are continually mechanically attached in series to the side of the wheel near the top of the wheel, and the many weights are mechanically removed at the bottom of the wheel in series, causing the wheel to spin and accelerate from the force of gravity on the weights, where raising the weights on the wheel would cause the wheel to slow, thus removing the weights at the bottom of the wheel prevents the wheel from slowing and accelerates the wheel. Once the weights are removed at the bottom of the wheel, the speed of the weights from their movement on the wheel is harnessed to raise the weights most of the way to the wheel’s weight attachment point near the top of the wheel, and a small amount of energy is used to raise the weights the rest of the way to the weight attachment point after harnessing their motion. The spinning of the wheel is harnessed to spin a generator to produce electricity, and some of the electricity produced by the generator is then used to raise the weights to the weight attachment point, where the excess electricity produced is used for the utility grid. As the wheel accelerates, it continues to produce additional electricity after time operating, because the electricity needed to raise the weights reduces as the wheel’s speed increases and the increased motion of the weights is harnessed, and from the increased speed of the wheel. As the wheel accelerates, the net production of electricity is positive. The device produces electricity without producing carbon emissions. Many of these devices could work together to produce a large amount of electricity to supply electricity to the utility grid.

The global annual market for electricity generation is $1.8 trillion. Most competitive electricity generating devices require costly inputs i.e. fuels to produce electricity, and since the device does not require fuel to produce electricity, the device should be highly competitive to most existing electricity generating devices, offering a lower cost of electricity. Since the device does not produce carbon emissions when producing electricity, and as electricity consumers are price conscious and environmentally conscious, there should be a high demand for the device.

The patent family for sale or license includes 2 granted U.S. patents (POWER TRANSMISSION SYSTEM, United States of America, 11,339,765, 11,668,286, Expiration Date 5/20/2041) and a pending U.S. continuation patent application. This patent family’s granted U.S. patents are strong and provide comprehensive protection of this technology and variations of this technology.

This technology was developed by and is owned by Duplicent, LLC (duplicent.com). Duplicent, LLC is a patent assertion entity and research and development company that owns 19 granted U.S. patents and more than 255 distinct technologies.

The sale price for this patent family is a price above $300,000. The licensing terms for this patent family are $100,000 paid upfront and a 3% royalty on this technology’s revenue, where the license could be exclusive with sales minimums (to be negotiated).

Patent publications:

US 11668286

US 11339765

Asking price:

Make an offer
