SLAG REMOVAL APPARATUS

[Category : - MECHANICAL ENGINEERING]
[Viewed 17 times]

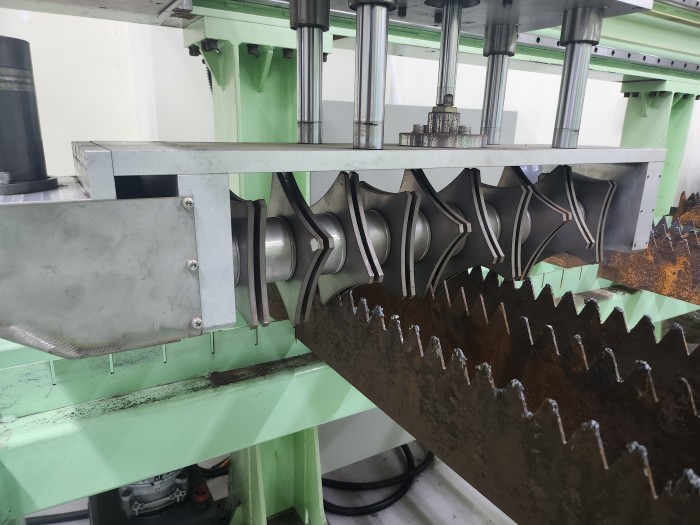

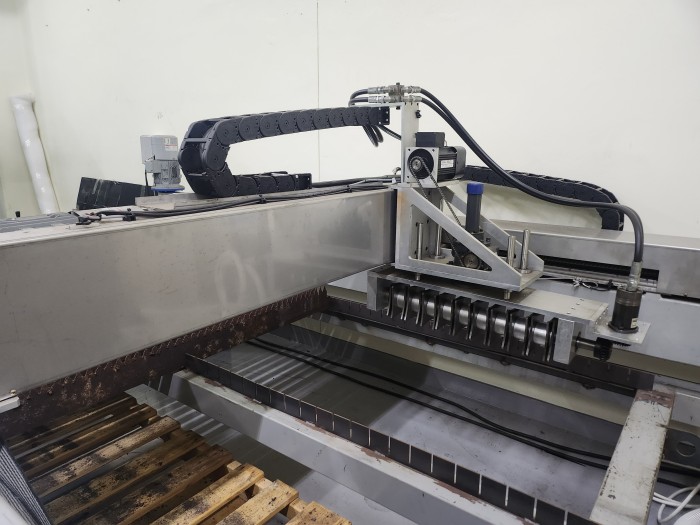

A slag removal apparatus for removing slag from support plates provided to support an object to be processed in a cutting machine is disclosed. The slag removal apparatus includes a scraper including a plurality of blades around an outer surface of a bar crossing the support plates, and a plurality of slots formed in the respective blades along a length direction and thus formed around the bar and in a length direction of the bar, a rotation support unit to which the scraper is rotatably installed, a rotation driving unit rotating the scraper from the rotation support unit to remove slag attached to the support plates by the blades, when the support plates are inserted into the slots, a lifting unit lowering the scraper, for insertion of the support plates into the slots and raising the scraper to an original position by raising and lowering the rotation support unit, and a first transfer unit moving the rotation support unit along a length direction of the support plates to allow the scraper to remove the slag along the length direction of the support plates. In addition, the slag removal apparatus can also be applied to shipyards or large-scale steel plate processing sites, thereby improving the efficiency of slag removal generated during hull fabrication and heavy plate cutting processes. Furthermore, the patent has been registered in the United States, China, and Europe, and the applicant is seeking opportunities to sell or license the technology in these markets.

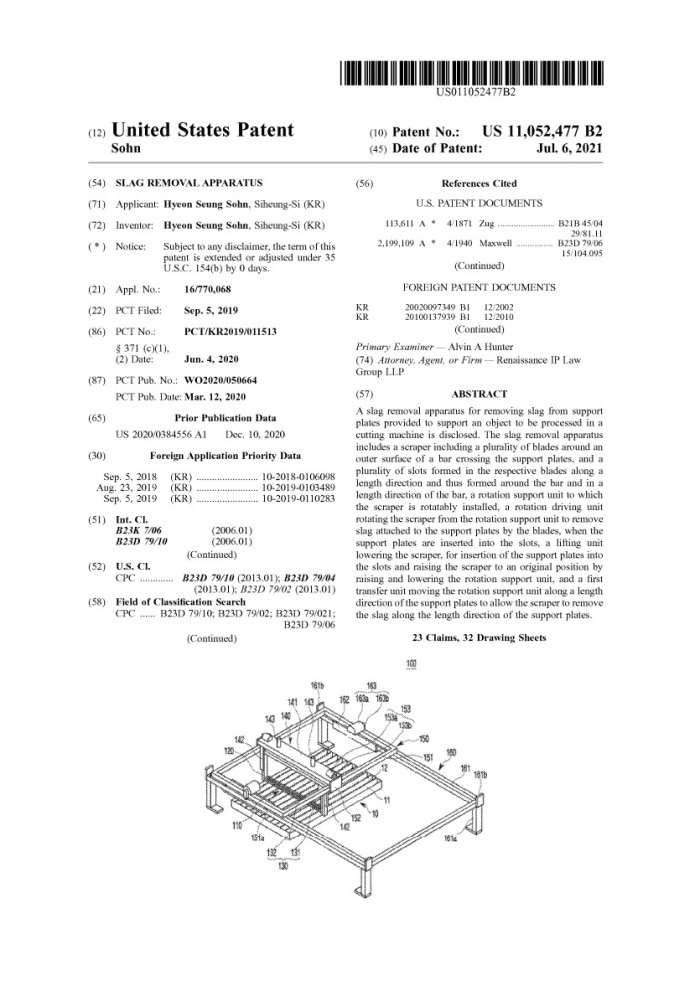

Patent publications:

US 20200384556

Asking price:

370,370 USD
