Furniture fittings A

[Category : - OTHER- DESIGN PATENTS- Furnitures]
[Viewed 26 times]

Product Description

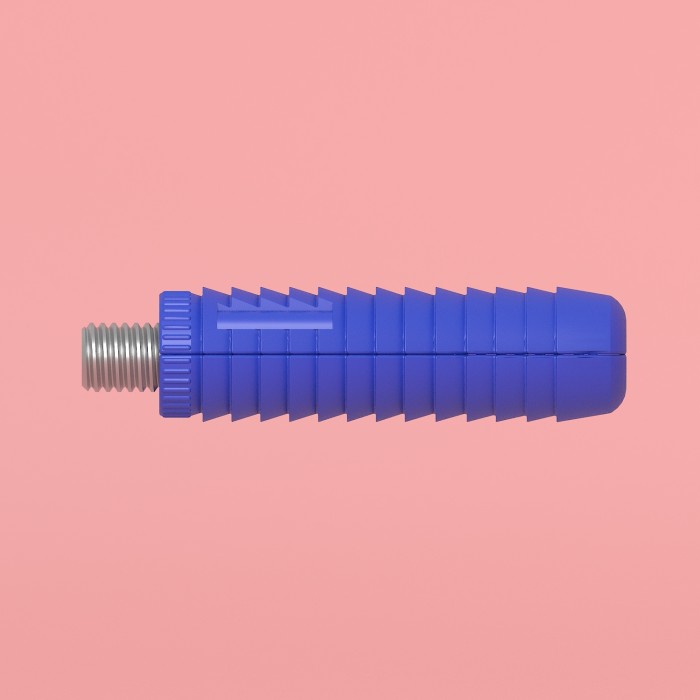

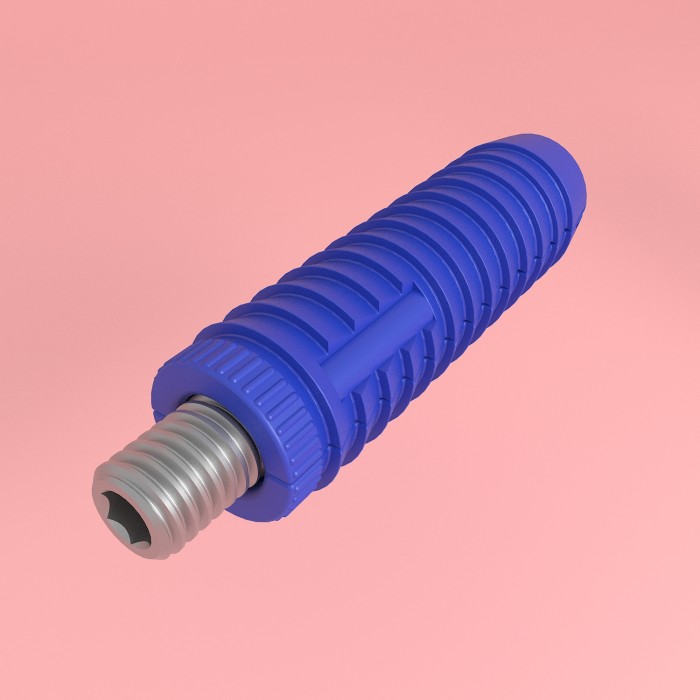

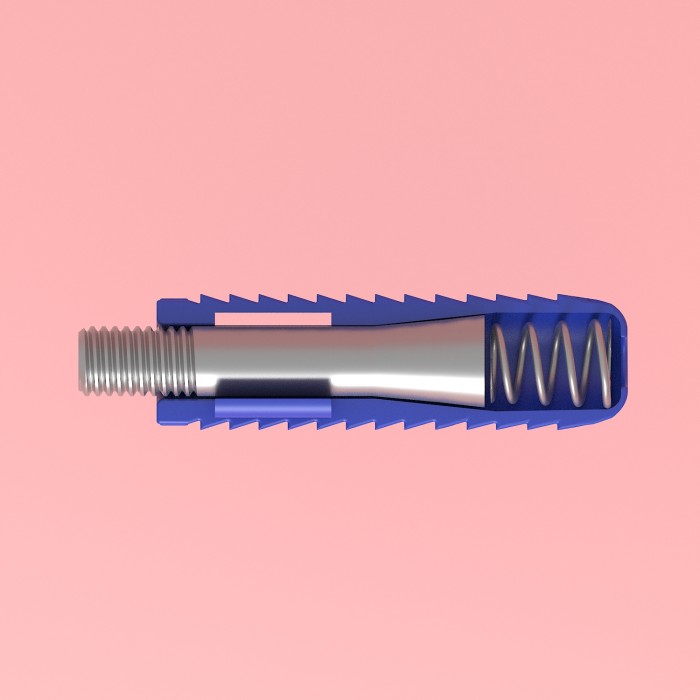

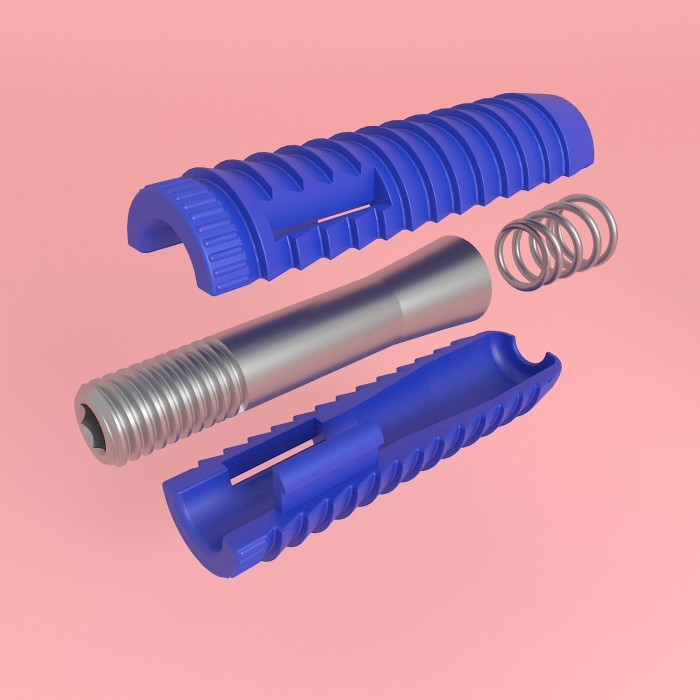

A concealed connector designed for the assembly of knock-down furniture manufactured from wood-based panels (chipboard, MDF, plywood, etc.) with thicknesses of 16 mm, 18 mm, 25 mm, and 30 mm.

In the joint between opposite panels, 8 mm or 10 mm diameter holes are drilled into the rebate. On the opposite side, the connection is achieved by means of a surface-mounted metal or plastic dowel.

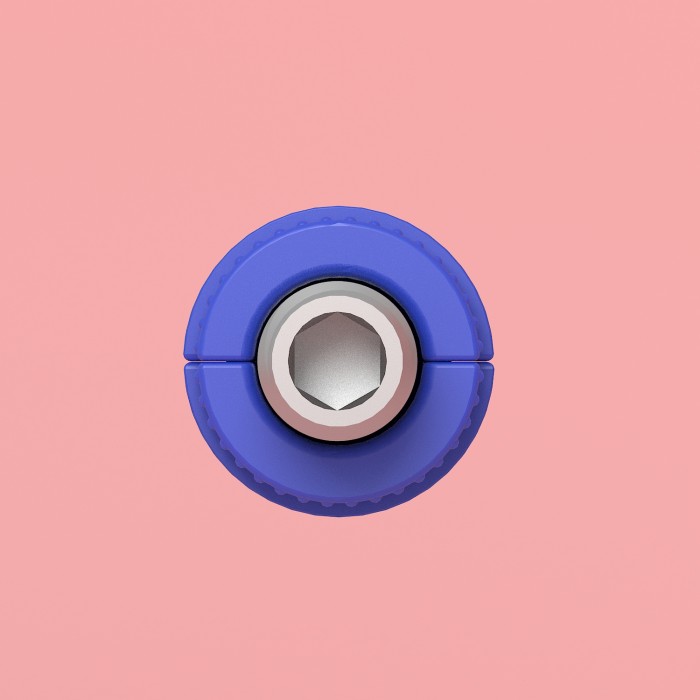

The fastening is carried out through a 3 mm diameter hole on the panel surface, using an Allen key based tightening principle.

Advantages of this design:

The furniture can be assembled and disassembled multiple times.

Since the assembly is performed only through a 3 mm surface hole, the aesthetic appearance of the furniture is preserved.

By using a metal or plastic-bodied dowel, a cleaner and more elegant finish is achieved.

This product is an alternative to commonly used concealed connection systems in standard furniture manufacturing, enabling knock-down furniture to be assembled quickly, securely, and with an improved aesthetic appearance.

Financial information

Registration Number: 2024 007757
Bulletin No.: 454
Publication Date: 10.02.2025
Registration Date: 24.09.2024
From: Turkish Patent Office
Investment & Collaboration Opportunity

The registered design No: 2024 007757 has been developed as an innovative alternative to the eccentric cam connectors that have been used in knock-down furniture production for the past century, with an annual consumption reaching hundreds of billions of pieces.
This product offers a practical, durable, and aesthetic concealed connection solution for wood-based panel furniture. It allows furniture to be assembled quickly and to be disassembled and reassembled multiple times without compromising its appearance.

Key Advantages

Compatible with 16 mm, 18 mm, 25 mm, and 30 mm panels.

Unlike traditional connectors, it does not require additional drilling or extra processing.

Positioned easily: surface drilling for the first panel (for the dowel) and edge drilling for the second panel (for the connector).

Easy and fast assembly with an Allen key.

Strong, reliable, and concealed connection.

Suitable for mass production in the furniture industry.

Collaboration Opportunities

Outright sale of design rights is possible.

Open to royalty-based licensing agreements.

Strategic partnerships with angel investors are welcome.

???? For further details, usage examples, and product videos, please visit our LinkedIn page.
Link

Patent publications:

No published information
Ask the inventor for a copy of the filed application

Asking price:

Make an offer
