innovative Inverter Card

[Category : - ELECTRICITY & LIGHTING]
[Viewed 2877 times]

Technology license for manufacturing & marketing

First Time In world: small size & very less Component Count Inverter, full function, Control Card Low Component Count Very Low Cost, High Production Capability,
No need A/C sensing Transformer, new Innovative Constant Charging System Via
Capacitor Charger, A/C in 160V~ 250V Model; No.1- 12V DC Model No. 2 – 24V DC

(1) With 2 Nos. very low cost IC
(2) Over load protection with LED Indicator & Buzzer Alarm Auto Reset
(3) Brown Out Protection (A/C Low voltage Cut Off) LED Indicator
(4) Battery Low Protection With LED Indicator
(5) Battery Over Charge Protection With LED Indicator
(6) Main On LED Indicator
(7) Inverter On LED Indicator

Connector Out/in
(1) 4 Led Out
(2) DC Fan Out
(3) Mosfet Drive Out
(4) Charge out
(5) Batt. + - In, Mains In, Inverter out

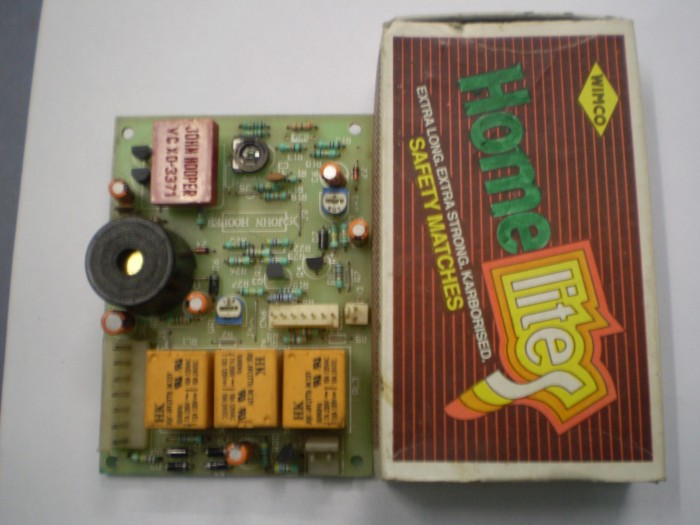

Inverter Card Size L- 9.5CM XW- 7CMX H- 2CM

feel free contact direct to Innovator Narayan Das Jethwani

Email: [Use the button below to contact me]

+91 092323 55432
