TV Remote with the definition channels

[Category : - ELECTRONICS- Audio - Video]
[Viewed 3874 times]

This text was translated online translator! Soon to be a professional translation!

EASY REMOTE CONTROL DEVICE FOR REMOTE CHANNEL!
In the TV channel search HAPPENS automatic.modern TV can play up to 100 or more channels.
my TV remote control used to the number for each CHANNEL BUT SINCE THEY ARE LOCATED POSCO HAOTICHNO.
MUCH time leaves the balance of the required
buttons.THE PROCESS CAN BE SIMPLIFIED.
You spend 20 40 MINUTES on the alignment of the channel on a self-identifying buttons.NA REMOTE button only ONE button.TV mode Compare all incoming channels and placed them on the button with the icon of the channel or the number buttons!


The normal search channels appear in a chaotic manner! My Device helps to place the channels found on the usual buttons, icons or buttons!

The technical result of the proposed utility model is to improve the application properties by gaining control to automatically adjust for certain channels, expanding the application by enabling automatic selection of the receiver frequency television signal.

The technical result is achieved by the TV remote control system includes a control panel with infrared control signal transmitter and a stationary unit comprising an infrared control signal receiver (tuner), receiver of television signals, a processing unit and a television signal output television information is characterized in that it further comprises TV signal analyzer (automatic resolver channels logo or accompanying information) that is connected to the unit processing a television signal.
Stationary unit may further comprise a jack input and output TV signal. The presence of input and output jacks allow to reduce the interference of the system.
The console can also contain fixed to the surface of the console series (in the area) with the function buttons signage with symbols television channels. The presence of plates with pre-deposited notation will speed up finding the channels the user, which further increase the consumer properties of the system.
The console can contain at least one function key with the surrounding surface, free from the information plate. The presence of "free button" will complement the remote control function key local (eg, cable) channel.

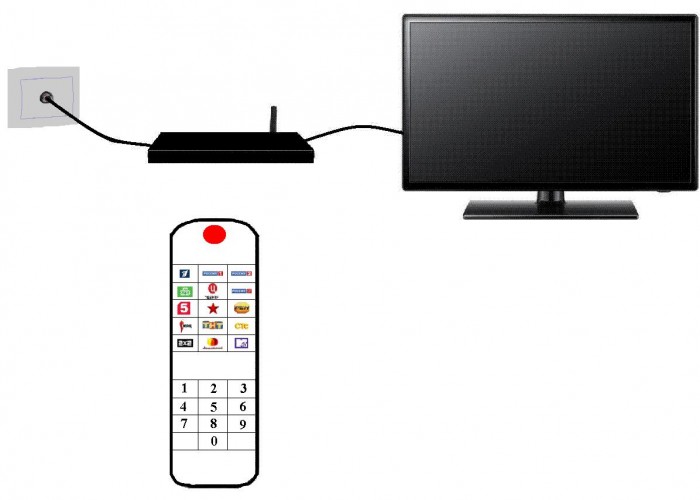

REMOTE is shown schematically in FIG. (Function Block Diagram) where:
1 - Remote control with infrared transmitter control signals and function keys;
2 - base unit;
3 - infrared receiver control signals;
4 - receiver of television signals;
5 - TV signal processing unit;
6 - output television signal;
7 - TV signal analyzer.

REMOTE CONTROL SYSTEM

Formula of Useful Model

1. The remote TV control system, which includes the control board with the infrared transmitter of control signals and stationary module, which has the infrared receiver of control signals, receiver of television signals, television signal processing module and television information output device, is characterized in that it additionally contains a television signal analyzer, which is connected to the television signal processing module.

2. The remote control system, mentioned in p.1, is characterized in that the stationary module additionally contains a television signal input connector.

3. The remote control system, mentioned in p.1, is characterized in that the stationary module additionally contains a television signal input connector.

4. The remote control system, mentioned in p.1, is characterized in that it additionally has information plates with symbols of television channels, rigidly attached on the surface of the board near functional buttons.

5. The remote control system, mentioned in p.1.4, is characterized in that it additionally has at least one functional button on the board with the surrounding surface free from any information plate..


REMOTE CONTROL SYSTEM


as a gift to the buyer two unpatented ideas about this tv remote when buying


Financial information

el:+79296563340 Rus

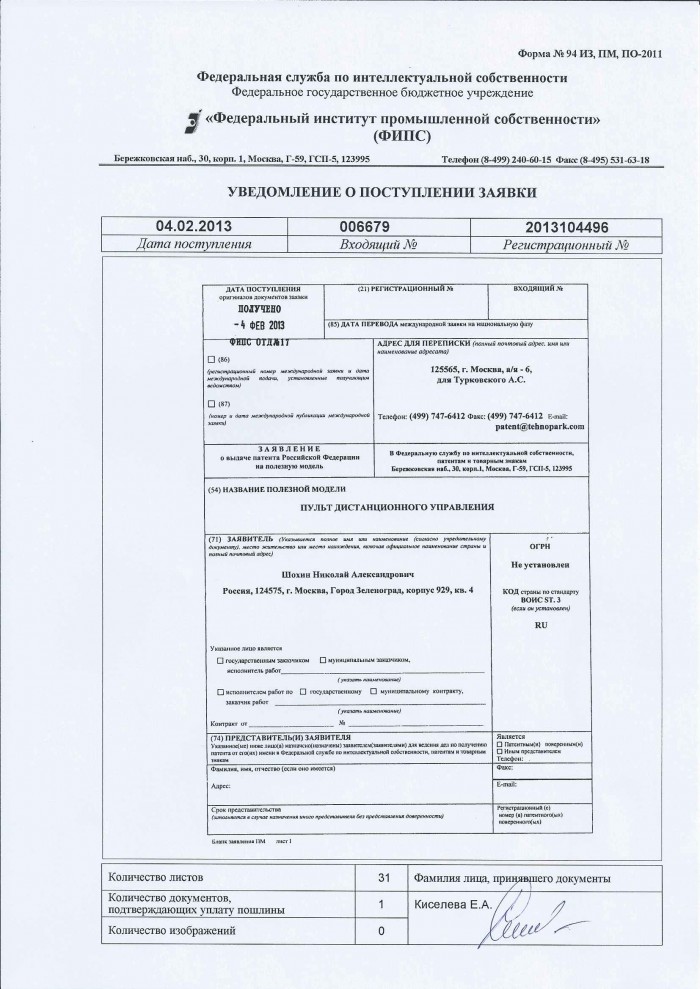

application number :2013104496
contact me for any questions plz: [Use the button below to contact me] or [Use the button below to contact me]
