Mechanism to provide desmodromic variable valve control for ICE

[Category : - Motors- Pumps]
[Viewed 2962 times]

GRANTED Patent - A timing mechanism to control valves to provide variable valve timing (VVT), variable valve actuation (VVA) and variable valve duration (VVD). The VVT mechanism comprising cam, a cam follower arranged to engage the cam 2 and a linkage connected at one end to the cam follower through a pin/bearing which may slide in an arc about the cam axis and at the other end to a rocker arm to actuate a valve of the engine such that movement of the pin means along the arcuate locus advances or retards the valve timing. A VVA mechanism which comprises a further rocker arm(s) that is slidingly moveable on an arcuate locus that increase/decrease the amplitude of the actuation. Also a VVD mechanism comprising of a double pair of cam followers engaging cam means of which one pair of cam followers is rotatable about the care linkage. Differential inputs in form of pinion gears meshed with racks along the cam follower linkage are used to adjust the pin position.
A simple desmodromic mechansim that requires no additional camshafts, gears, springs or timing chain/belt to operate engine valves directly from the engine output shaft.

Financial information

Outright sale/license/assignment.

Patent publications:

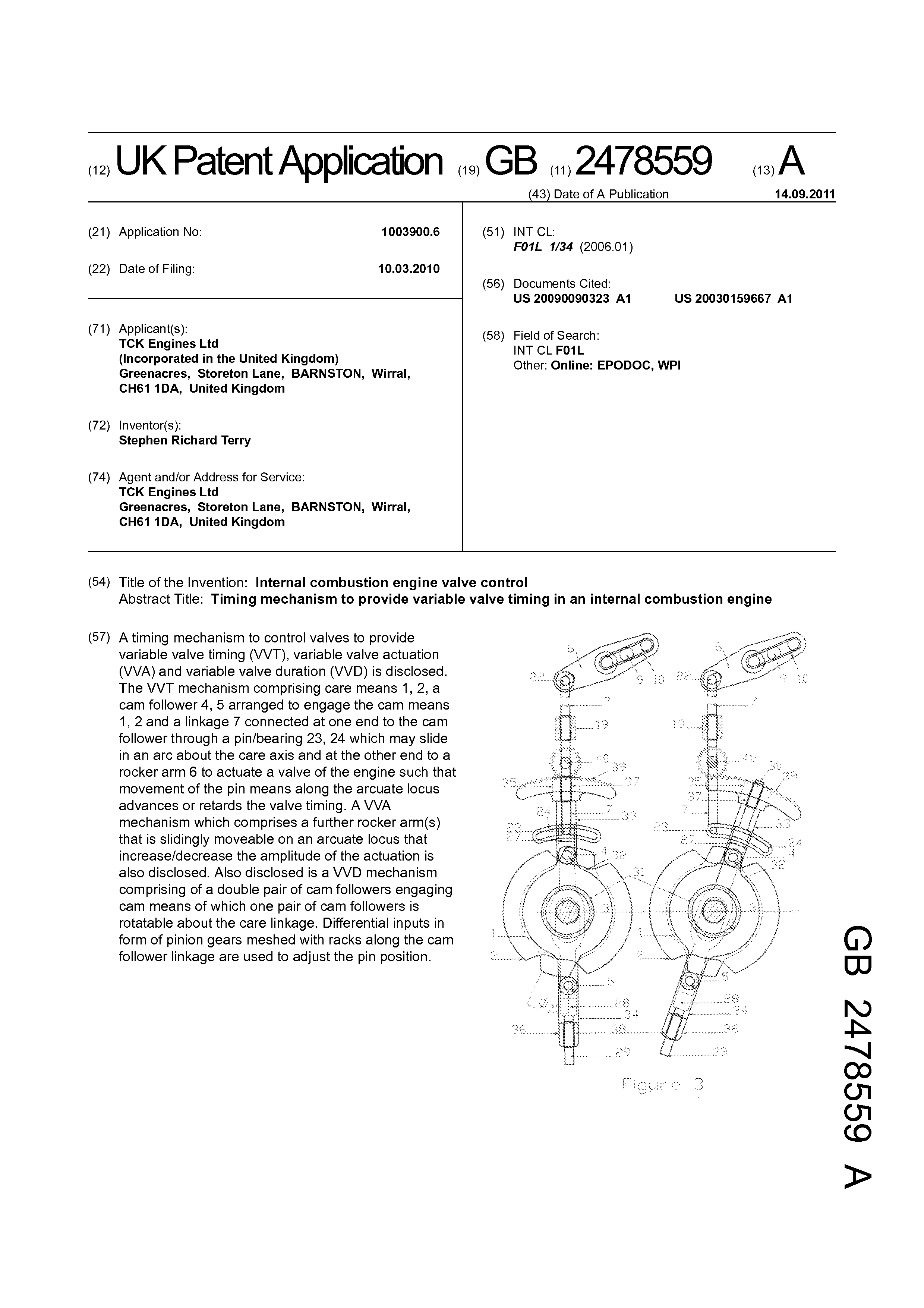

GB 2478559

Asking price:

50,000 USD
