FOLDABLE CAMPING BED
This invention relates to the improvement in devices generally used for having a sleep while outing.
There are already many designs which are used to have rest while outing or used in day to day life at homes. But usually they are cumbersome to maintain and fit on a proper place. For example some of them need a large space (spacious), inconvenient, non-portable, expensive, non-fashionable, not comfortable, and many more……
However, the present invention is free of all these demerits being non spacious or less spacious (0.125m2 base area), easily portable and handy, easily affordable, stylish, lavish and comfortable too, has an inbuilt stand which enables to keep it at any likely place without any problem.
Such Foldable Camping Bed could also be made of various shapes and sizes just by changing the angles and dimensions. Here the shown bed is single bed of 2m x1m. It could also be made of square shape or any regular polygon by changing the angle between the main rods, number of rods and the dimensions of bed sheet.
Bed sheet should be made of such textile/cloth which is firm and strong and stitched with strong Thread(11) to metallic chains.
All the rods, hooks, ropes, chains and semicircular rings must be strong and preferably light weighted.
Metallic chains hold the Bed Sheet in the regular shape without tearing it as the force is distributed along all the edges instead of just four corners.
Strong hooked Metallic Ropes(13,15) are responsible for folding and unfolding of the Camping Bed.
Dimensions of the various parts of the Camping bed are so arranged that when the Hooks(15) are locked the Bed Sheet is stretched and Metallic chains are in tension. Bottom ends of the Legs(9) of the Camping Bed and the Central Base(6) must lie on the same plane.
Blocker(17) limits the bending of the Legs(9).
Tie(8) is made up of very strong textile and used to bind up the folded Camping Bed similar to the umbrellas we used in our day today life.
Rivets(16&19) are very strong which acts as hinges which allows Legs(9) and Main Rods(14).
Hooks(3) allows us to change/attach/detach the Bed Sheet.
Hooks(15) allows us to fold and unfold the Camping Bed.
Metallic Ropes(13) prevents the Bed from collapsing.
Brief description of the drawing
In all there are 6 Drawings i.e :
FIG. 1 Shows the TOP VIEW of the Foldable Camping Bed.

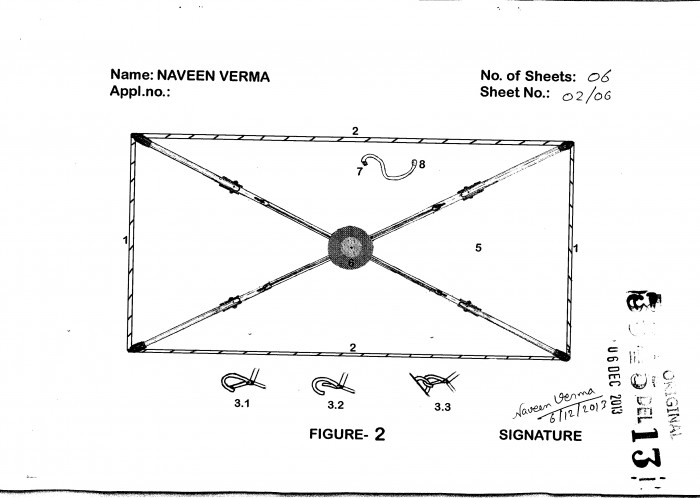

FIG. 2 Shows the BOTTOM VIEW of the Foldable Camping Bed.

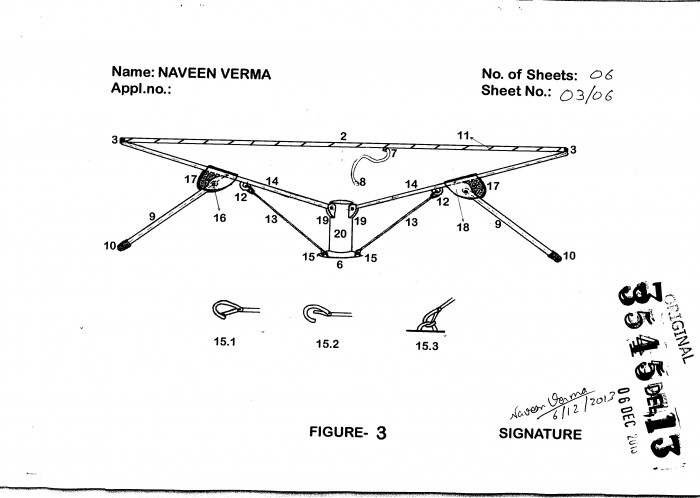

FIG. 3 Shows the SIDE VIEW of the Foldable Camping Bed.
FIG. 4 Shows the SIDE VIEW of Special Case 1 of the Foldable Camping Bed.
FIG. 5 Shows the SIDE VIEW of Special Case 2 of the Foldable Camping Bed.

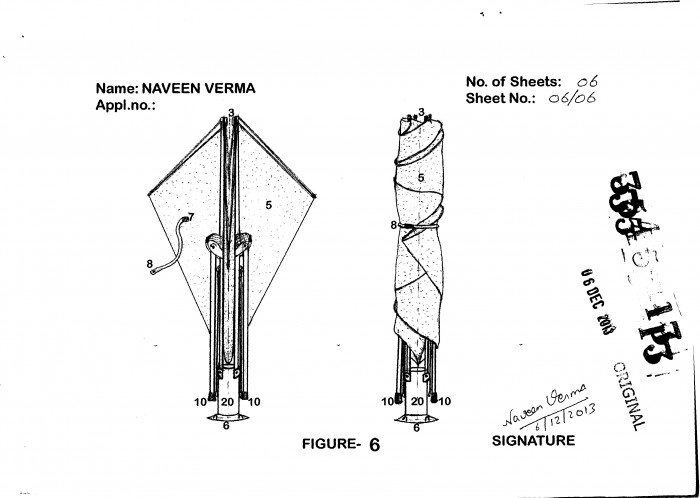

FIG. 6 Shows the FOLDED VIEW of the Foldable Camping Bed.
In each drawing the dimensions of all materials are diminished 10 times.
Scale:- 1cm2 in Drawings = 10cm2 in reality.
i.e. A Sample could be easily made using the dimensions 10 times more than that of drawings.
All the measurements are subject to required shape, size and design.
Parts with similar structure which are clearly understood might not be labeled in every figure.
Detailed description of the preferred embodiments:
Referring FIG.1 -TOP VIEW
(1) Metallic Chain along the breadth of the Bed Sheet i.e 1m.
(2) Metallic Chain along the length of the Bed Sheet i.e 2m.
(3) Hooks (strong) to be fixed at the Metallic Chains at the corners of the Bed Sheet.
(3.1) Closed View of the Hook(3).
(3.2) Open View of the Hook(3).
(3.3) Locked View of the Hook(3).
(4) Top View of the Bed sheet of the Foldable Camping Bed.
Referring FIG.2 - BOTTOM VIEW
(5) Bottom View of the Bed Sheet of the Foldable Camping Bed.
(6) Central Base (frustum shaped) of the Foldable Camping Bed.
(7) Stitched End of the TIE(8).
(8) TIE.
Referring FIG.3 - SIDE VIEW
(9) Legs of the Foldable Camping bed made up of Metallic Rods.
(10) Rubber covering at the bottom of the Legs(9) for perfect grip on the slippery surfaces/floors.
(11) Strong Thread used to stitch the Bed sheet firmly to the Metallic chains.
(12) Semicircular Rings fixed to the rings attached to Metallic ropes(13).
(13) Metallic Ropes.
(14) Main Rods pivoted at the cylindrical base of the Foldable Camping Bed.
(15) Hooks fixed the end of the Metallic ropes(13) to attach it to the semicircular rings at the Central base(6); similar to the previous Hooks(3) used in bed sheet corners.
(15.1) Closed View of the Hook(15).
(15.2) Open View of the Hook(15).
(15.3) Locked View of the Hook(15).
(16) Riveted joints acting as hinges to bend the Leg(9) about the Main Rods(14).
(17) Blocker with hard rubber/plastic to limit the bending of the Legs(9).
(18) Blocker with empty portion which allows the Legs(9) to fold and unfold.
(19) Riveted Joints acting as hinges to bend the Main rods(14) about the Cylindrical base(20).
(20) Hollow Cylindrical base surmounted over the central base(6).

Referring FIG.4 – Side View of the Special Case 1
Similar Foldable Camping Bed can also be made by removing the Blocker(17) and attaching Metallic ropes(13) whose one end is fixed at the Central base(6) and the other end fixed on the opposite Leg(9) a little above the Rubber covering(10).
Referring FIG.5 – Side View of the Special Case 2
Similar Foldable Camping Bed can also be made by removing the hooked Metallic Rope(13) and attaching similar hooked Metallic Chain with its one end on the outer ends of the Main rods(14) and the other end (hooked) to be attached to the respective Legs(9) above the Rubber covering(10).
Referring FIG.6 – FOLDED VIEW
After unlocking the Hooks(15) the are folded inwards and the Main rods(14) are folded upwards.
Now the TIE(8) is bounded around the Bed Sheet, Rods(14) and Legs(9) and finally tied. Foldable Camping Bed is now folded.
